olimpic k 230 evo Single-sided automatic edge bander
(Steuern, Versand und Installation sind im Preis nicht enthalten.)

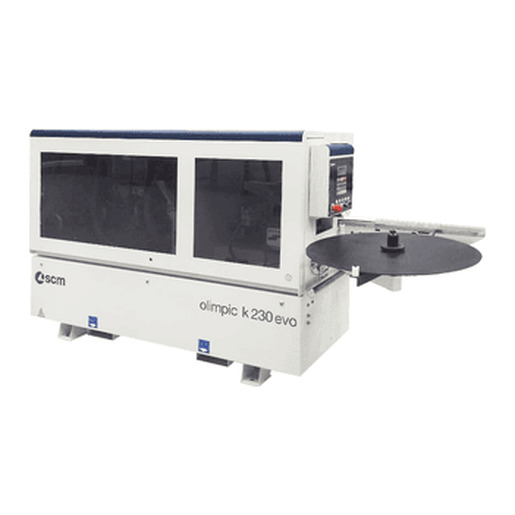

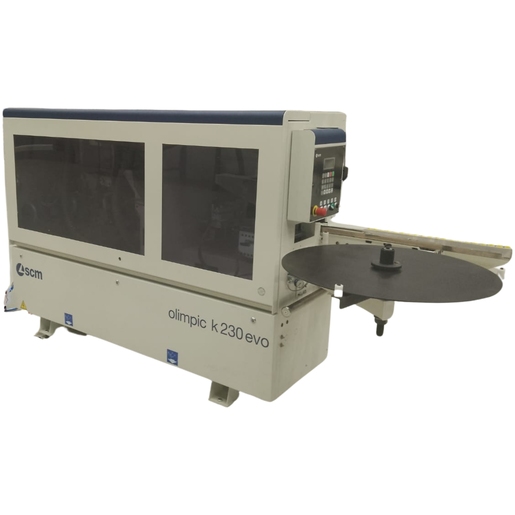

The olimpic k 230 evo is a compact single-sided edge bander for applying edge in coils or strips up to 3 mm thick on the sides of straight panels using EVA glue.
Working speed: 9 m/min.
Edge cut and "radius" in a single operation performed by the end-cutting unit.
Manual processing changeover between thin edge, thick edge, and solid wood lipping.
This edge bander is designed for non-intensive use and is ideal for small craft businesses looking to start professional edge banding in the furniture industry.
*This machine requires mandatory installation. Installation will be quoted after purchase. For any further information or assistance, please feel free to contact us.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Simple and intuitive Orion One Plus electronic control for error-free use of the machine.
4" graphic display with large, bright characters. Keyboard with "soft touch" keys and luminous LEDs.
Gluing unit with 3 pressure rollers, 2 of which with opposing tapering for an excellent joint line.
End trimming unit for cutting and rounding the edge in a single operation with double blade device.
Nesting copiers on the trimming and edge scraping units for processing panels from the nesting cycle.
-
Upper working units fixed to the presser to allow their automatic adjustment when changing the panel thickness.
-
Lower working units fixed to the lower beam for precise reference to the panel
-
Panel transport with track consisting of skids covered with high-grip rubber and industrial chain with 3/4’ links
-
Telescopic panel support roller conveyor positioned outside the track along the entire length of the machine
-
Glue pot with melting temperature management with double thermoregulation and temperature lowering function in case of momentary non-use of the machine. Quick release.
-
Automatic edge loading: in rolls with take-off roller and cutting shear, in strips with edge-pusher device
-
Trimming-chamfering unit with quick changeover between thin, thick and solid wood edges with the 3 manually selectable working positions
-
Edge scraping unit for removing notches left by tools during trimming from plastic edges
-
Glue scraping unit for removing any excess glue in the joint between panel and edge.
-
Brush unit for cleaning and polishing the edge
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- "Nesting" copying device kit
- Tools kit R=1,5 instead of R=2
- "VC-V1" gluing unit
- "K-2 radius" end cutting unit
- "R-K" trimming unit
- Increased motor power for the trimming units
- "RAS-V" edge scraping unit
- "RC-M" glue scraping unit
- "SP-M" brushing unit
TECHNICAL DATA | ||||
Track feed speed | m/min | 9 | ||
Panel thickness | mm | 8-60 | ||
Thickness of edges in strips / coils | mm | 0,4-3 | ||
Max. section of coiled edges | mm² | 135 | ||
Coil-holder plate diameter | mm | 780 | ||
Exceeding material to the panel thickness | mm | 2+2 | ||
Panel gap | mm | 600 | ||
Min. panel length with edge in strips /coils (110 mm min. width) | mm | 140 | ||
Min. length of edge in strips / coils | mm | 260 / 200 | ||
Min. panel width (210 mm min. length) | mm | 90 | ||
Worktable height | mm | 900 | ||
Panel support roller opening | mm | 500 | ||
GLUE POT | ||||
Power | kW | 3 | ||
Heating time | min | 12 | ||
Glue pot capacity | kg | 1,5 | ||
END CUTTING UNIT | ||||
Motor power | kW | 0,2 | ||
Cutters included. Speed | rpm | 12.000 | ||
TRIMMING-CHAMFERING UNIT | ||||
Motor power | kW | 0,55 | ||
Panel minimum thickness with radius | mm | 12 | ||
Vertical / front copying devices | disc/wheel | |||
Tools included. Radius | mm | 1,5 | ||
EDGE SCRAPING UNIT | ||||
Min. panel thickness | mm | 12 | ||
Vertical / front copying devices | disc/disc | |||
Tools included. Radius | mm | 1,5 | ||
BRUSHING UNIT | ||||
Motor power | kW | 0,14 | ||
Tool speed | rpm | 2800 | ||
