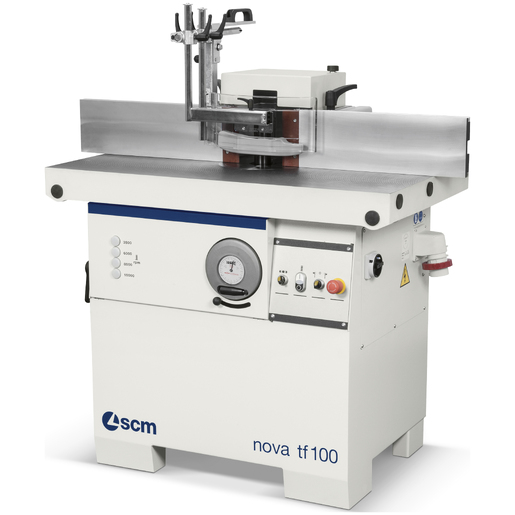

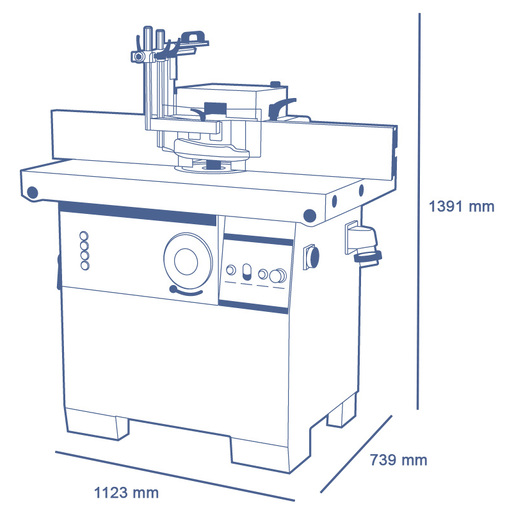

Nova TF100 Spindle moulder with fixed spindle
![Nova TF100 | Spindle moulder with fixed spindle](/medias/convert-515Wx515H-nova-tf-100.jpeg?context=bWFzdGVyfGltYWdlc3w4MzYwNnxpbWFnZS9qcGVnfGFHUmpMMmcyWkM4NE9UZ3pOemcwTVRJNE5UUXlMMk52Ym5abGNuUXROVEUxVjNnMU1UVklYMjV2ZG1FdGRHWXRNVEF3TG1wd1pXY3xkNzkzMWFhYzRjZTdkZDYyNWI1NTEwM2QxODU5ZTg2NDdkYTA0ZmMxNGQ4YjEzZTZlYzIzZmM0YWMyYTE5NGIy)
![Nova TF100 | Spindle moulder with fixed spindle](/medias/convert-515Wx515H-OUTLINE-Nova-tf-100.jpg?context=bWFzdGVyfGltYWdlc3w2MDEwM3xpbWFnZS9qcGVnfGFEaGtMMmcxWmk4NE9UZ3pOemcwTlRnM01qazBMMk52Ym5abGNuUXROVEUxVjNnMU1UVklYMDlWVkV4SlRrVmZUbTkyWVNCMFppMHhNREF1YW5CbnxhZmVhYjllNWQ0NTEzYWY2NTE0NTNhNWNlNTJkZjUwZTMyZDgzZmM2YTdhM2Y2MTUwMThiYTVjMzRhMmZhYjgx)
A$13,049.00
(Price does not include taxes, shipping and installation)
Easy-to-use, productivity and efficiency, flexibility are the main advantages of the nova tf 100. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine. The spindle moulder fence with mechanical programming guarantees maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.
Available NO, Please contact us for ETA
![](/medias/convert-100Wx100H-Gruppo-toupie.jpg?context=bWFzdGVyfGltYWdlc3w3MjUzfGltYWdlL2pwZWd8YURrNUwyaGxZaTg0T1Rnek56ZzNPVGsxTVRZMkwyTnZiblpsY25RdE1UQXdWM2d4TURCSVgwZHlkWEJ3YnlCMGIzVndhV1V1YW5CbnwwNTNkNDFiZjdjMDg1ZDEzN2FiNGFhNDlhMDhhZGNhMWZhMjMwMjMxNmFlYjcwZjgzZjZlYjM2ZGZkMmZlNmU0)
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The shaper spindle is surrounded by a cast iron “cup” to protect the internal mechanical components from shavings and sawdust
![](/medias/convert-100Wx100H-Guida-toupie-con-programmazione-meccanica.jpeg?context=bWFzdGVyfGltYWdlc3w2NzMxfGltYWdlL2pwZWd8YURobUwyZzFNQzg0T1Rnek9ESXdPVFU1TnpjMEwyTnZiblpsY25RdE1UQXdWM2d4TURCSVgwZDFhV1JoSUhSdmRYQnBaU0JqYjI0Z2NISnZaM0poYlcxaGVtbHZibVVnYldWalkyRnVhV05oTG1wd1pXY3w1NzIyYjA2OWI5YzhkZjA4YzY2YjQzNGRkZTg4NDQ4NWRhZTFjODAyNzhlNjIxNDE3M2ZlMTI5NjRjYzUwOTZl)
The spindle moulder fence with mechanical programming and digital readouts ensures accuracy to a tenth of a millimetre in positioning the tables so that no more test runs are required to get the desired result
![](/medias/convert-100Wx100H-volantino-nova-tf100.jpg?context=bWFzdGVyfGltYWdlc3w3OTgwfGltYWdlL2pwZWd8YURCaUwyZzVaaTg0T1Rnek9ESXhNVFUyTXpneUwyTnZiblpsY25RdE1UQXdWM2d4TURCSVgzWnZiR0Z1ZEdsdWJ5MXViM1poSUhSbU1UQXdMbXB3Wnd8Nzc0Y2IyNTM3MmNiN2JiMTdhZTU5ZmNkMmFlZWYwMGMwNDJkOTNiODNkNDJmMTRiOTQ4YjE2ODk0MzdmYWM5Mw)
The operator easily adjusts the unit movement due to the hand wheel with mechanical decimal readout located on the front of the machine for a precise and reliable machine’s set up.
- The 4 standard speeds of the shaper are ideal for any type of machining, from shaping to routing, with the possibility to fit tools up to 250 mm (9.81”) of diameter
- The side handles make it easy to remove and reposition the spindle moulder fence from the worktable
- Aluminium tables instead of wooden tables for fence with connecting bars between the two tables
- Electric speed display dial
- Reverse spindle rotation with electrical interlocking for reverse operation
Technical features |
| NOVA TF 100 |
Worktable dimension (with carriage as optional device) | [mm] | 1080x655 |
Spindle moulder shaft tilting |
| - |
Spindle moulder shaft height diam. 30-35 (40-50) | [mm] | 125 (125) |
Spindle base projection from worktable | [mm] | 2 |
Spindle base projection from worktable with interchangeable spindle | [mm] | 38 |
Max. tool diameter retractable under worktable (45°) | [mm] | 240x80 |
External diameter of exhaust outlet (spindle moulder hood) | [mm] | 120 |
External diameter of exhaust outlet on base | [mm] | 120 |
