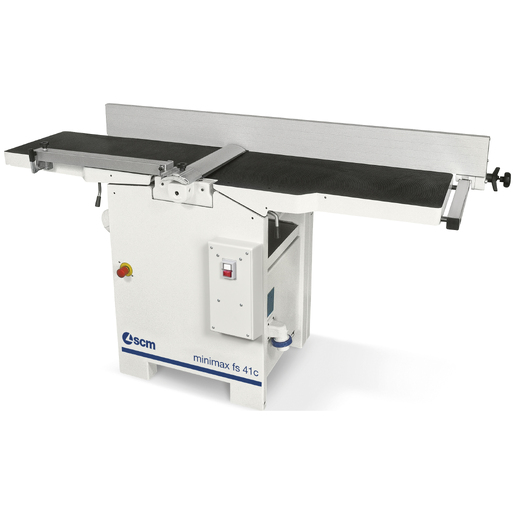

minimax fs 41c Classic Single Phase
A$10,236.00
(Price does not include taxes, shipping and installation)
Powerful and user-friendly, the minimax fs 41c surfacing-thicknessing planer for D.I.Y. woodworkers and craftsmen workshops. This 16" Jointer/Planer combo machine offers compact size with long jointer tables and a sturdy fence, delivering power and precision at a great value. Explore the option of the "Xylent" cutterhead available for this machine.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Optimal planing
The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives. For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.
Absolute rigidity
Very high rigidity of the surfacing fences made of extruded aluminum with 1670 mm length.
“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
- The “Xylent” cutter block also improves the dust extraction due to the production of very small chips
- Each cutter of the “Xylent” block has 4 tips which can be rotated into the cutting position when worn, therefore increasing the knives production life before they require replacement
- The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed
- The sandblasted steel thicknesser outfeed roller maintains the perfect post-machining finish.
- Handwheel with gravitational numerical readout for an easy and precise positioning of the thicknessing table
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- minimax fs 41c CE version
- Wheels for machine movement
- "Xylent" spiralknife cutterblock with 3 series of knives
- Handwheel with gravitational numerical readout for the thicknessing table positioning
- Single-phase motor 3kW (4hp) 50Hz
| TECHNICAL DATA | ||
| Cutterhead working width | mm / inches | 410 / 16 |
| XYLENT Spiral Helical Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives | mm / n° mm | 87 / 66 15 x 15 x 2.5 |
| Max. stock removal | mm | 4 |
| Jointer table length | mm / inches | 1800 / 71 |
| Planer table dimensions | mm / inches | 410 x 605 / 16 x 24 |
| Planer feed speed | m/min | 7 |
| Min. - max. planer working height | mm / inches | 3 - 230 / 0.12 - 9 |
| Single-phase motor | kW/HP | 3/4 |
| Voltage - Frequency | 230V 50Hz | |
| Fence Tilt | degrees | 0 - 45 |
