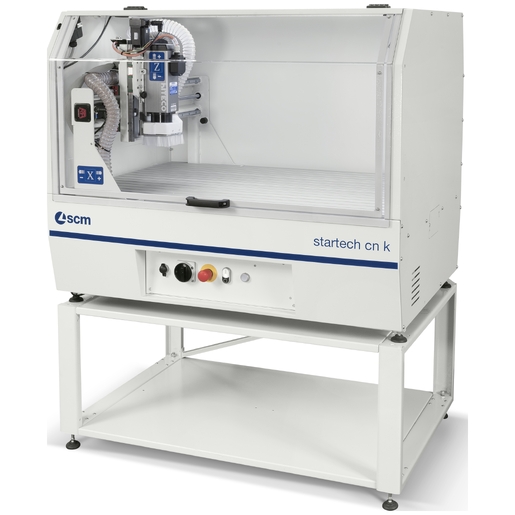

startech cn k Compact 3-axis machining centre
A$17,765.00
(Price does not include taxes, shipping and installation)
startech cn k is the new 3-axis machining centre designed for the artisan carpentry, training schools and prototyping departments of industrial realities. It is able to carry out all types of milling, decorations, engraving,signboard creation and 3D model prototyping.
Thanks to its ease of set up and use it can also be installed independently Designed with the highest safety standards in mind, startech cn k is the only one in its category equipped with an integral cabin with internal LED lighting, which ensures absolute protection for the operator and keeps the surrounding environment clean.
The extremely rigid and robust structure guarantees professional precision and repeatability.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Maximum safety with the integral cabin that ensures operator protection and keeps the working environment clean
Unique in its category with the 2,2 kW S6 (18000/24000 rpm) powerful electro-spindle with R25 tool-chuck generally used on higher-segment machines
Easy programming with the “open” virtual human-machine interface capable of importing G-code from any type of CAD / CAM software.(it is advisable to verify with the software supplier that the CAD/CAM provides a G-code that can be read from the interface)
- Integral protection cabin with plexiglass front door (unique in its category)
- NC mouvement with 3 interpolating axes
- Ethernet port for user PC connection (PC not included)
- Aluminum work table with "T" grooves
- Internal LED lightening
- HICAM2 virtual human-machine interface
- Support base with wheels and adjustable feet (500 mm height) for an easy machine handling
- Kit of 5 pneumatic suction cups that can be positioned on the work table to assure ease-of-use and accuracy
- Tool height detection sensor for an absolute reliability
*Do not include power cable
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Machine support base with wheels and adjustable feet (500 mm height)
- Kit of 5 pneumatic suction cups that can be positioned on the work table
- Tool height detection sensor
| TECHNICAL FEATURES | ||
| Work table dimensions | mm | 1170x60 (46"x2.3") |
| "T" groove dimensions | mm | 13.5x7 opening 8.5 for passage of M8 screw or nut |
| X-Y-Z strokes | mm | 915-610-176(36"-24"-6.9") |
| Z work piece clearance | mm | 160 (6.3") |
| X-Y-Z max. axis stroke | m/min | 5-5-2,5 |
| Min. distance of the spindle ring from the work table | mm | 10 (0.3") |
| Hiteco electro spindle motor power | kW | 2.4 S6 a 300Hz |
| Max. rotating speed | rpm | 24,000 |
| Tool chuck | R25 | |
| Max. tool holder diameter | mm | 16 (0.6") |
| Max. tood diameter | mm | 60 (2.3") |
| INSTALLATION REQUIREMENTS | ||
| Power supply | V (Hz) | 230 (50) single phase |
| Rated current | A | 16 (0.6") |
| Extraction air consumption | m3/h | 115 |
| Exhaust aid speed | m/s | 20 |
| Exhaust outlet diameter | mm | 40 (1.6") |
| Compressed air consumption | NI/min | 120 |
| Pneumatic system operating pressure | bar | 6.5 |
