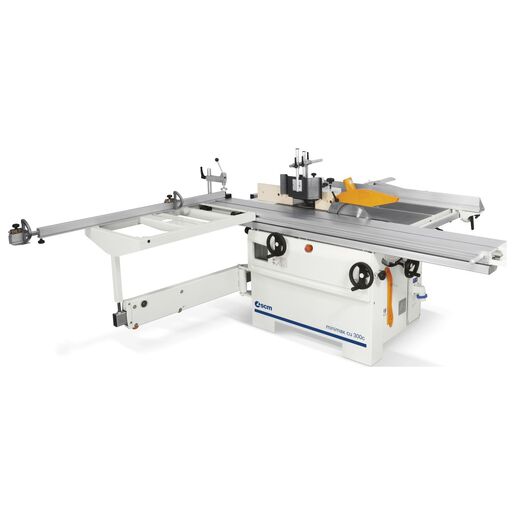

minimax cu 300c X Three Phase
21% Black Friday
A$15,010.00(Price does not include taxes, shipping and installation)
The universal combined machine cu 300c is a high-level solution in the field of multifunctional joinery machines. Among the most important aspects, in order to ensure precision and reliability, there is the extremely efficient exhaust hood, which, by ensuring a clean machine environment, facilitates its maintenance and increases the machine precision and reliability overtime. Others very important aspects of this machine are ease of use, flexibility, accuracy and safety.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
An incredible cutting with the saw unit with 315 mm maximum blade (not included) diameter with the scoring blade installed
The scoring unit adjustment is carried out from outside the machine by means of with special knobs and without the necessity of keys
The “Xylent” spiralknives cutter block gives an exceptional finish with reduced noise during machining thus to provide a more comfortable working environment
SCM Thundercut App for tablet: cutting optimizer and sequencer even for less experienced operators
Large squaring frame with professional telescopic swinging arm support

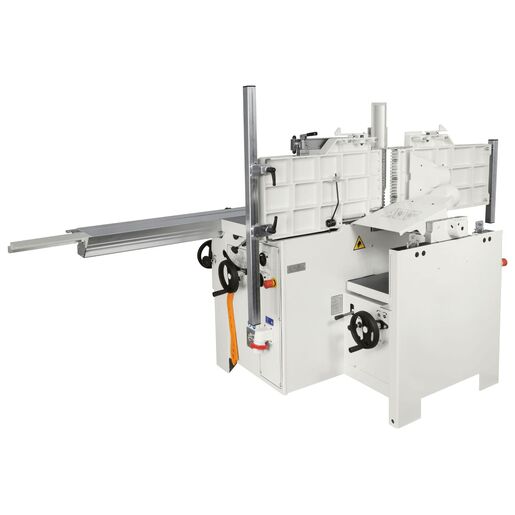

Thicknessing is more comfortable: during the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine, with a 90° angle, and simultaneously
- Very high effective saw unit exhaust hood: the emission level is 90% lower with respect to the maximum level allowed by the European safety regulations!
- The sliding carriage ensures top quality precision, smooth and silent action, self cleaning dustproof system, long lasting accuracy, no adjustments required.
- The telescopic squaring rule is equipped with 2 flip-over stops which allow to have precise references that can be used for both profiles.
- The “Xylent” cutter block also improves the dust extraction due to the production of very small chips
- Each cutter of the “Xylent” block has 4 tips which can be rotated into the cutting position when worn, therefore increasing the knives production life before they require replacement
- Professional fences are supplied for the saw and surfacing planer. The fences are designed to be easy to remove and to allow a rapid changeover from one type of operation to another
- The spindle moulder unit has a cast iron structure and it is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt.
- Precise and safe machining with the spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers.
- Anodized aluminum tables for spindle moulder fence
- Exhaust outlet under the worktable
- Spindle moulder with interchangeable spindle for a very quick spindle substitution
- Wheels for an easy machine movement
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- minimax cu 300c CE version
- Version with maximum squaring stroke 2600 mm
- Belt driven scoring unit complete with blade
- Professional fences
- "Xylent" spiralknife cutterblock with 3 series of knives
- Anodized aluminium tables for spindle moulder fence
- Exhaust outlet under the worktable
- Wheels for machine movement
- Interchangeable spindle
- Spindle moulder shaft of 30 mm diam
- Locking by countersunk socket screw
TECHNICAL FEATURES | ||
Planer: | ||
Useful working width | [mm] | 300 |
Cutter block diameter | [mm] | 72 |
Maximum stock removal | [mm] | 4 |
Surfacing tables total length | [mm] | 1510 |
Thicknessing table dimensions | [mm] | 585 x 300 |
Feed speed on thicknesser | [m/min] | 7 |
Minimum ÷ maximum working height on thicknesser | [mm] | 3 ÷ 230 |
Circular saw: | ||
Cast iron saw-spindle moulder worktable dimensions | [mm] | 1115 x 335 |
Blades tilting | 90° ÷ 45° | |
Maximum saw blade diam. with scoring blade installed | [mm] | 315 |
Maximum saw blade projection from table at 90°/45° | [mm] | 100/78 |
Maximum squaring stroke | [mm] | 2600 |
Cutting width on parallel fence | [mm] | 820 |
Spindle moulder: | ||
Spindle diameter | [mm] | 30 |
Max. useful spindle length | [mm] | 100 |
Spindle moulder speed | [rpm] | 3500/7000/10.000 |
Max. tool diameter when profiling | [mm] | 210 |
Max. diam. of tool lowered under the table at 90° | [mm] | 180 |
Other technical features: | ||
Three-phase motors | [kW/hp/Hz] | 5/6,6/50 |
xhaust outlets diameter | [mm] | 120 |
Additional installations requirements: | ||
Section of electrical cable | [mm2] | 2,5 |
Power absorption | [A] | 9 |
CE version -voltage - frequency | 400EU - 50Hz |
