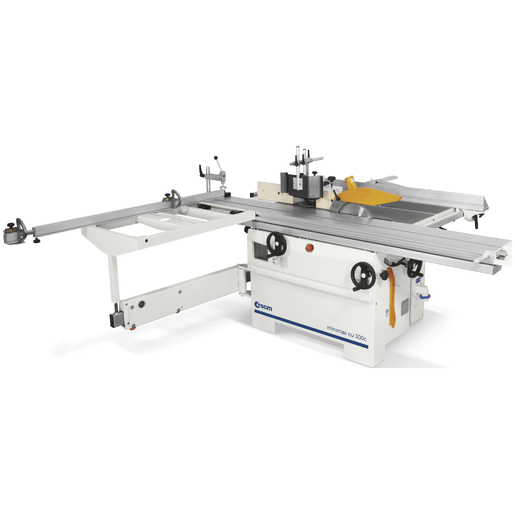

minimax cu 300c 26X1 Single Phase

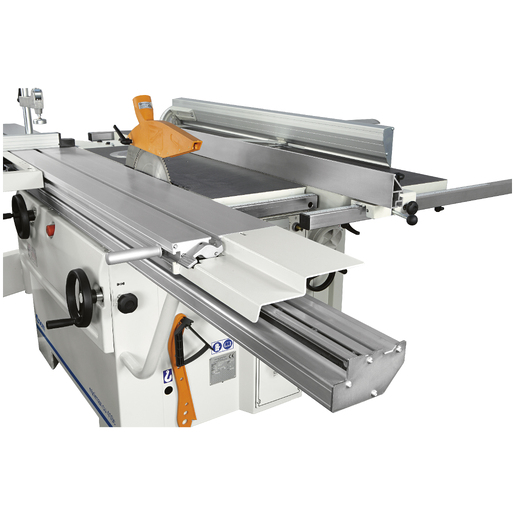

Woodworking excellence with the minimax CU300 Classic. This professional combination machine offers accuracy, reliability, and user-friendly operation. As a genuine European combination machine, it boasts a range of impressive features, including a sliding table saw with a scorer, a spindle moulder with three speeds, a 300mm wide surfacer with an oversized working fence, and a 300mm thicknesser. With three independent motors, one for each operating group, this machine provides optimal power and performance.
Professional and very sturdy: The unit has a cast iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers.
Optimal planing: The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives. For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.
Exceptional accessibility: Thicknessing is more comfortable: during the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine, with a 90° angle, and simultaneously. Work pieces with a maximum height of 230 mm can be machined to the thicknesser. The new design of the dust conveyor, protecting the cutter block, is specifically intended to further increase system safety and efficiency.

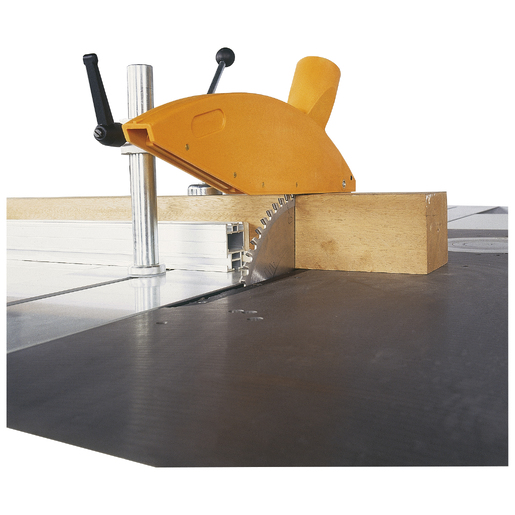

Performance without limits: Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.
| TECHNICAL DATA | ||
| Cutterhead working width | mm / inches | 300 / 12 |
| Jointer bed length | mm / inches | 1510 / 60 |
| Max. sawblade diameter with scoring blade installed | mm / inches | 315 / 12 |
| Sawblade arbor size | mm / inches | ? |
| Max. sawblade projection from table at 90°/45° | mm / inches | 100/78 3.75/3 |
| Cutting width on parallel fence (Rip capacity) | mm / inches | 820 / 32 |
| Max. useful spindle length | mm / inches | 100 / 4 |
| Max. tool diameter when profiling | mm / inches | 210 / 8.25 |
| Spindle moulder speed | rpm | 1700/4000/7000/9000 |
| (3x) Single-phase motors | Hp | 4.8 |
| Max. squaring stroke of sliding table saw | mm / ft | 1600/5.5 or 2600/8.5 |
