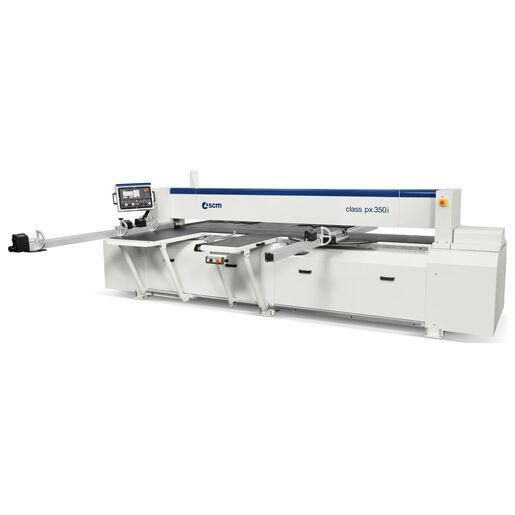

class px 350i Circular saw

Starting from {0}

(Price does not include VAT and delivery)

Circular saw with mobile carriage and tiltable blade up to 46° to operate in safety with working space reduced up to 50% compared to a traditional circular saw.

<p><strong>Optimal finish with the new saw unit</strong> with rigid structure which allows, with maximum ease, a perfect cut of veneered or solid wood panels, both at 90° and tilted up to 46°.</p>

Optimal finish with the new saw unit with rigid structure which allows, with maximum ease, a perfect cut of veneered or solid wood panels, both at 90° and tilted up to 46°.

<p><strong>Simple and rapid</strong> programmed movement with the <strong>"Ready" mobile control panel.</strong></p>

Simple and rapid programmed movement with the "Ready" mobile control panel.

<p><strong>Immediate positioning</strong> thanks to the double powered and programmed rear stop that ensures a quick and precise work piece positioning.</p>

Immediate positioning thanks to the double powered and programmed rear stop that ensures a quick and precise work piece positioning.

<p><strong>Sturdy and reliable telescopic squaring fence </strong>with the tilted metric scale towards the operator and the 2 reversible stop: panels squaring up to 2500x3000 mm (3200x3200 mm as an option).</p><p>The fixed table of large dimensions guarantees a stabile panel support when machined.</p>

Sturdy and reliable telescopic squaring fence with the tilted metric scale towards the operator and the 2 reversible stop: panels squaring up to 2500x3000 mm (3200x3200 mm as an option).

The fixed table of large dimensions guarantees a stabile panel support when machined.

TECHNICAL FEATURES
Maximum squaring strokemm2600/3200/3800
Blade tiltingmm0÷46°
Maximum saw blade diameter (cutting)mm350
Maximum saw blade diameter (engraving + cutting)mm300
Max. saw blade projection (D350) from table at 90°/45°mm105/72
Max. saw blade projection (D300) from table at 90°/45°mm80/50
Blade rotation speedlaps/min4000
Cutting width on rear fencemm1300
Other technical features
Three-phase motor 7 kW 50 Hz
Exhaust hoods diametermm120 (1) - 100 (2)
Overall dimensionsmmL 3859/4459/5059
L 3196
H 1368
