The panel feed speed by track guarantees optimal holding and feeding linearity.

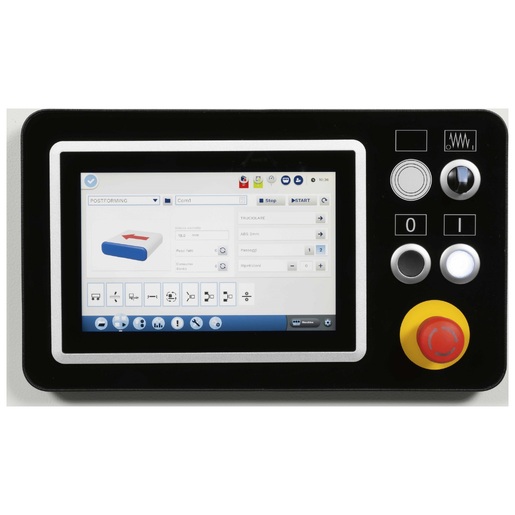

Optimal managing of the machine thanks to the new 10” touch screen “eye-S” Compact Console with Maestro active edge, operator interface, where all of the machine functions are graphically shown.

Very high edge quality finishing with the trimming unit including rotating copiers. The high frequency motors generate high cutter rotating speed, reducing to a minimum any marks left from trimming and guaranteeing the absence of vibrations.

- Top machining units fixed to the presser to allow the automatic positioning according to the panel thickness

· Bottom machining units fixed to the machine base, under the belt, for an accurate panel reference

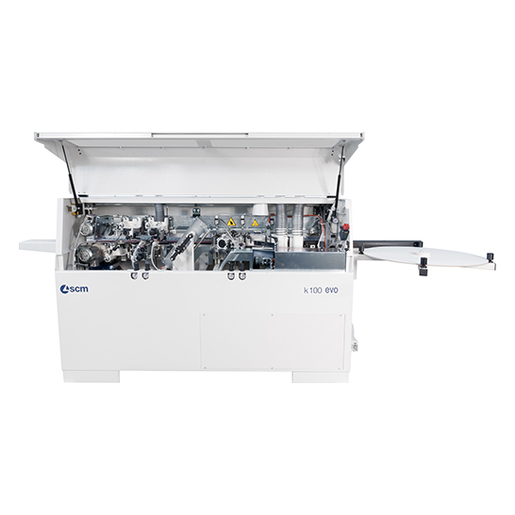

· Safety enclosure on the entire machine length with polycarbonate windows for the machining unit view during the processing

· Electrical cabinet with door inside the machine base enabling an easy access in case of any maintenance operations

· Panel support rollers positioned parallel to the belt; it can be extended on the entire machine length

· Kit for glue pot rapid replacement that includes the rapid unlocking device and the double thermoregulation system for managing two different working temperatures (i.e. for polyurethane glues use)

· Pre-milling unit with diamond tools; it performs the panel edge obtaining an optimal surface for the glue application and a perfect jointing line with the edge

· Glue pot unit for the automatic gluing with hot melt glue of edges in rolls and strips on straight panels

· Single-motor end cutting unit that carries out the cutting of front and rear exceeding edge

· Trimming unit for the trimming of top and bottom exceeding edge; it includes 2 high frequency motors, rotating copiers, unit manual exclusion and combi cutters (R=2) to machine different edge types.

· Edge scraping unit fitted with numerical readout for the positioning and with rotating copiers; it eliminates the presence of notches left from the tools on the plastic edges during the trimming

· Glue scraping unit with rotating copier that eliminates any glue excess in the joint between panel and edge, improving the panel cleaning

· Brushing unit with 2 independent motors for the cleaning/polishing of the edge

MACHINE CONFIGURATION
(Options and accessories included with this machine)

"RAS-M" edge scraping unit
"RC-M" glue scraping unit
"SP-M" brushing unit

Technical data
Track feeding speed	m/min	7
Panel thickness	mm	8-50
Thickness of edge in strips	mm	0,4-3
Thickness of edge in rolls	mm	0,4-3
Max. section of edge in rolls	mm²	150
Max. plate diameter	mm	700
Exceeding material to the panel thickness	mm	2+2
Distance between two successive panels	mm	600
Min. panel length with edge in rolls (110 mm min. width)	mm	160
Min. panel length with edge in strips (110 mm min. width)	mm	180
Min. length of edge in rolls	mm	200
Min. length of edge in strips	mm	220
Min. panel width (210 mm min. length)	mm	110
Worktable height	mm	900
Width for fixed panel support roller	mm	615
Pre-milling unit
Max. removal	mm²	55
Thickness removal	mm	0,5-1-1,5-2
Min. panel width	mm	110
Motors power S1/S6	kW	1,8/2,2
Tool diameter	mm	80
Tool height	mm	56
Tool rotating speed	rpm	8.300
Glue pot unit
Installed power	kW	0,25
Glue pot capacity	kg	0,8
Single-motor end cutting unit
Motor power	kW	0,2
Cutters rotating speed	rpm	12.000
Trimming unit
Motors power	kW	0,35
Cutters rotating speed	rpm	12.000
Min. panel thickness with radius	mm	12
Vertical/front copiers		disc/disc
Knives radius	mm	2
Edge scraping unit
Min. panel thickness	mm	12
Vertical/front copiers		disc/disc
Knives radius	mm	2
Brushing unit
Motors power	kW	0,14
Cutters rotating speed	rpm	2.800
MINIMUM INSTALLATION REQUIREMENTS
Compressed air consumption L=3300 panel	Nl/cycle	470
Extracted air consumption	m³/h	1333
Air speed for suction	m/sec	20
Current rating	A	23
CE version – Voltage /Frequency		400V / 50Hz 3 Phases + Neutral + Floor
