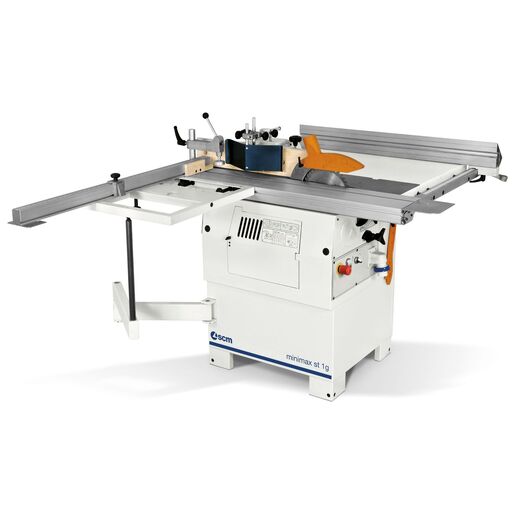

minimax st 1g Saw-spindle moudler

~~£5,369.00~~

10% online discount

£4,832.10

(Price does not include VAT and delivery)

The ST 1G toupie saw stands out for its compactness and its affordable price. Designed for demanding carpenters and artisan workshops. The ergonomic study of the machine was carried out with the aim of allowing even those who have very small work spaces to work easily. Despite its small size, the machine is characterized by robustness and precision. Great attention is also paid to safety, the machine is in fact equipped with a rich set of safety devices.

Added to Your Shopping Cart

Available 1

Item ready for delivery

ST 1G INSTALLATION
For this model the SCM installation is required.

Advantages

Saw carriage in anodized aluminium with sliding blade better cutting precision

Spindle moulder unit: flexible to use

Product details

Optimizer/Sequencer App for Tablet: SCM Thundercut

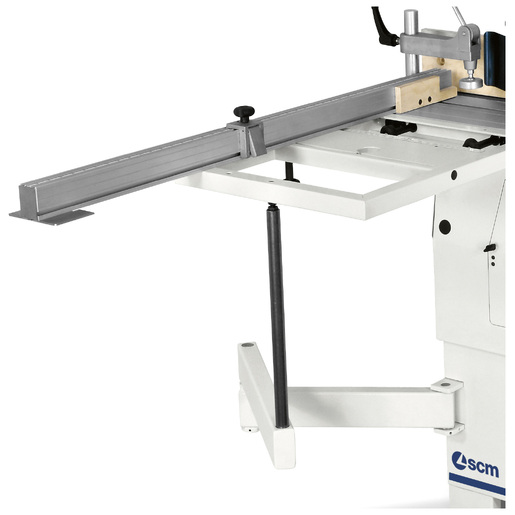

Extruded anodized aluminium sliding table sliding next to the saw blade
Adjustable spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers
Round sliding bar on parallel fence

Specs

MACHINE CONFIGURATION
(Options and accessories included with this machine)

Round sliding bar on parallel fence
2 single-phase motors 1,8kW (2,5hp) 50Hz
Spindle moulder shaft of 30 mm diam.
Locking by countersunk socket screw

TECHNICAL FEATURES
Circular saw:
Cast iron saw-spindle moulder worktable dimensions	[mm]	1024 x 224
Blade tilting		90° ÷ 45°
Max. saw blade diameter	[mm]	250
Max. saw blade projection from table at 90°/45°	[mm]	75/60
Max. squaring stroke	[mm]	1200
Cutting width on parallel fence	[mm]	700
Spindle moulder:
Max. useful spindle length	[mm]	75
Spindle moulder speeds (at 50 Hz)	[rpm]	5000/7500
Max. tool diameter when profiling	[mm]	160
Max. Ø of tool lowered under the table at 90°	[mm]	145
Other technical features:
Three-phase motors S6		1,8kW (2,5hp) 50Hz - 2,2kW (3hp) 60Hz
Exhaust outlets diameter	[mm]	120
Spindle moulder available with following diameters:		30 mm, 1 1/4"
