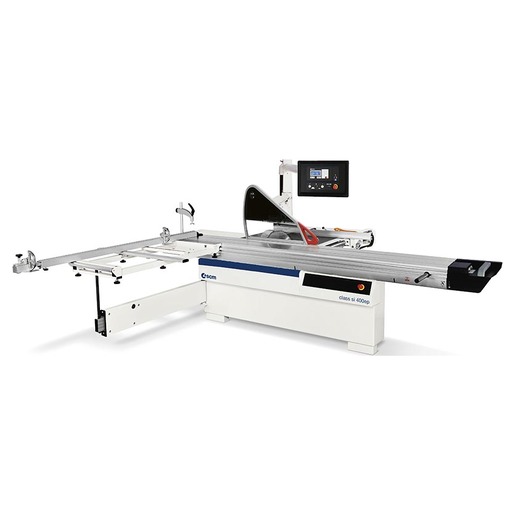

class si 400ep Sliding table saw
Starting from £17,339.00
(Price does not include VAT and delivery)
Superior technology combined with an ease of use.
Main functions:
- Connectivity among machines belonging to the same company network and 4.0 Industry preset
- Sharing of work programs and tools database
- Activity monitoring and reporting on the use of the machine
- Connectivity with SCM Thundercut (optimizer/sequencer App)
- Self-diagnosis, tele-service and link to troubleshooting
New suspended protection:
vertical sliding of the protection hood through “cage ball guide”
wheels on protection hood to facilitate the overriding of the workpieces
improved suction capacity
cutting line laser projector
Sliding carriage: maximum cut quality guaranteed over time
The carriage will never require adjustment due to its structure with arch-ground steel slideways (developped by Scm).
Console "eye-S"
Il nuovo quadro comandi, con il suo design accattivante, permette una programmazione semplice ed intuitiva della macchina, combinando lo schermo a colori 10” touch-screen e l’interfaccia utente Maestro active.
"eye-S" console
The new control panel, with its attractive design, allows easy and intuitive machine programming, combining the 10” colour touchscreen display and the Maestro active user interface.
Speed and precision ensured by the motorised programmable rip fence mounted on a recirculating ball screw mechanism with sliding on linear guides.
| TECHNICAL FEATURES | ||
| Max. saw blade diameter with mounted scorer | mm / inches | 400 / 16 |
| Maximum saw blade projection from table to 90°/45° | mm / inches | 140/97 5.5/3.8 |
| Cutting width on rip fence (Rip capacity) | mm / inches | 1270 / 50 |
| Max. squaring stroke of sliding table saw | mm / inches | 3200 /126 |
| Three-phase motor | Hp | 15 |
