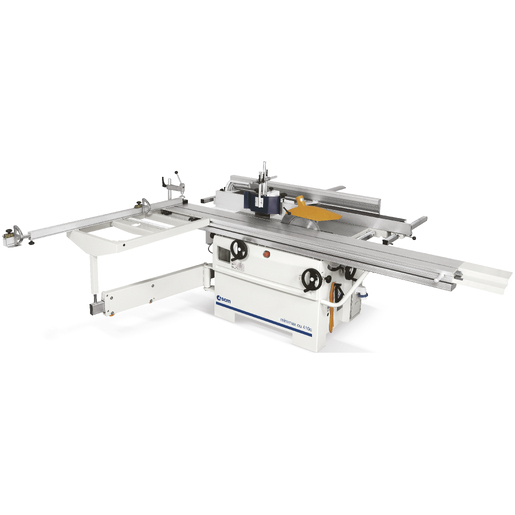

minimax cu 410c Universal combined machine
10% online discount
£11,780.10(Price does not include VAT and delivery)
The cu 410c universal combined machine is the machine with the largest useful working width at the planer, 410mm, in the category of multifunction carpentry machines. Among other important aspects, in order to guarantee precision and reliability, there is the extremely efficient suction hood, which ensures a clean machine environment, facilitates its maintenance and increases the precision and reliability of the machine over time.
Added to Your Shopping Cart
Incredible cutting with the new saw unit and sliding table
Squaring frame and fence: maximum performance as standard
90° simultaneous tables opening towards the inside of the machine: exceptional access
SCM Thundercut App for tablet: cutting optimizer and sequencer even for less experienced operators
The “Xylent” planer shaft with knives arranged in a spiral allows extremely silent planing operations
- "Xylent" spiralknife cutterblock with 3 series of knives
- 2 extra handwheels for the operating units movement
- Handwheel with gravitational numerical readout for the thicknessing table positioning
- Optimizer/Sequencer App for Tablet: SCM Thundercut
- Extruded anodized aluminum sliding table sliding on high precision hardened steel guideways
- Squaring frame complete with: telescopic fence with 2 crosscut flip-over stops, eccentric clamp, swinging arm support.
- Saw unit with scoring blade (option) installed (blade not included)
- Simultaneous surfacing tables opening, at 90°, towards the inside of the machine
- Adjustable spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers
- Integrated fence, for parallel cuts and surface planing
- Pre-setting for mortiser
- New design of the dust-conveyor, to protect the cutter block, for further system safety increase
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Version with maximum squaring stroke 2250 mm
- Belt driven scoring unit complete with blade
- Additional table on the sliding table
- 2 extra handwheels for the operating units movement
- Handwheel with gravitational numerical readout for the thicknessing table positioning
- Professional fences
- "Xylent" spiralknife cutterblock with 3 series of knives
- Spindle moulder shaft of 35 mm diam
- Locking by countersunk socket screw
| TECHNICAL FEATURES | ||
| Planer: | ||
| Useful working width | [mm] | 410 |
| Cutter block diameter (mm)/n. standard knives | 72/3 | |
| HSS standard knives dimensions | [mm] | 410 x 30 x 3 |
| Max. stock removal | [mm] | 4 |
| Surfacing tables total length | [mm] | 1800 |
| Thicknessing table dimensions | [mm] | 605 x 410 |
| Feed speed on thicknesser | [m/min] | 7 |
| Min. ÷ max. working height on thicknesser | [mm] | 3 ÷ 230 |
| Circular saw: | ||
| Cast iron saw-spindle moulder worktable dimensions | [mm] | 1115 x 335 |
| Blades tilting | 90° ÷ 45° | |
| Max. saw blade diam. with scoring blade installed | [mm] | 315 |
| Max. saw blade projection from table at 90°/45° | [mm] | 100/78 |
| Max. squaring stroke (standard) | [mm] | 1600 |
| Cutting width on parallel fence | [mm] | 900 |
| Spindle moulder: | ||
| Max. useful spindle length | [mm] | 100* (70 mm with 3/4” spindle) |
| Spindle moulder speeds (at 50 Hz) | [rpm] | 3500/7000/10.000 |
| Max. tool diameter when profiling | [mm] | 210 |
| Max. diam. of tool lowered under the table at 90° | [mm] | 180 |
| Other technical features: | ||
| Three-phase motors S6 | 5kW (6,6hp) 50Hz - 6kW (8hp) 60Hz | |
| Exhaust outlets diameter | [mm] | 120 |
| Spindle moulder available with following diameters: | 30 – 32 - 35 - 40 - 50 mm; 3/4" - 1" - 1 1/4" |
