action fl Electro mechanical cabinet clamp
Ab {0}
(Steuern, Versand und Installation sind im Preis nicht enthalten.)

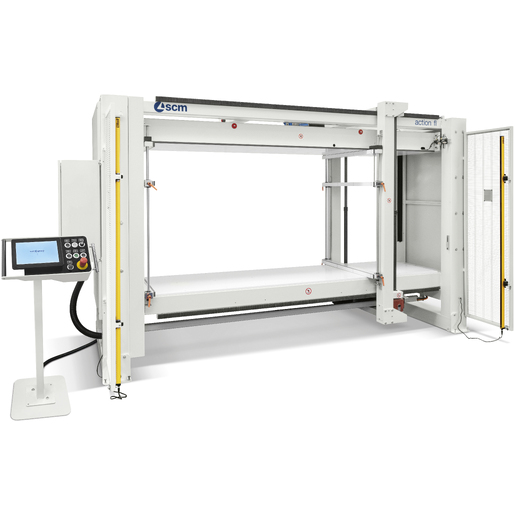

The electro mechanical cabinet clamp action fl with manual loading/unloading and a complete automatic cycle, is the solution for the assembly of cabinets. This machine is suitable for all cabinet manufacturers, with low productive volumes (up to 30 cabinets/shift).
Zum warenkorb hinzugefügt
Efficient cabinet squaring by means of an integrated rack and pinion system.
Best performance due to installed brushless motors, which allow the cycle’s maximum speed execution.
Versatile use due to touch screen panel control.
| TECHNICAL DATA | ||
| Installed power | kW | 4 |
| Standard working dimensions (max) | mm | 2500x1250(H)x800 |
| Standard working dimensions (min) | mm | 250x250(H)x150 |
| Working height | mm | 600 |
