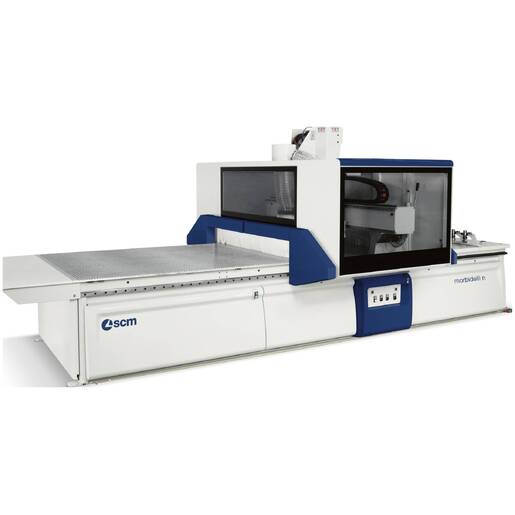

morbidelli n100 CNC Nesting Machining Centres for routing and drilling
Prezzo scontato a partire da {0}
(Escluso IVA, spese di spedizione e installazione)
Machining centre designed and engineered for woodworking.
Thanks to the unique design and PRO-SPACE safety systems directly integrated onto the machine, a reduced floor space is required and is accessible from all sides to place panels or small components on the work table.
MINIMUM OVERALL DIMENSIONS AND MAXIMUM FLEXIBILITY: “PRO-SPACE” PROTECTIONS
Loading zone completely free to reduce the space occupied to the minimum. The absence of perimeter protections facilitates the work table access on all the sides of the machine.
TOTAL ABSENCE OF VIBRATIONS: MOBILE GANTRY STRUCTURE
Performance without comparison with the mobile gantry structure that allows for high machining speeds whilst guaranteeing the best end products quality.
DESIGNED FOR EFFICIENCY AND SAVING: “H.E.” (High Efficiency) WORK TABLE
Sturdy and practical work table, resistant over time thanks to its laminate aluminum structure.
Easy and quick setting with the magnetic locking system of the vacuum: in a few seconds the vacuum is activated only in the positioning area of the piece to be machined.
TOTAL ABSENCE OF VIBRATIONS:
MOBILE GANTRY STRUCTURE
Performance without comparison with the mobile gantry structure that allows for high machining speeds whilst guaranteeing the best end products quality.
| TECHNICAL DATA | n100 12 | n100 15 | n100 18 | n100 22-31 | n100 22-43 | |
| Axes | ||||||
| Vectorial speed X-Y axes | m/min | 35 | 35 | 35 | 35 | 35 |
| Z axis stroke | mm | 250 | 250 | 250 | 250 | 250 |
| Z axis panel passage | mm | 150 | 150 | 150 | 150 | 150 |
| Routing unit | ||||||
| Motor power (max.) | kW (hp) | 15 (21) | 15 (21) | 15 (21) | 15 (21) | 15 (21) |
| Rotation speed (max.) | rpm | 24000 | 24000 | 24000 | 24000 | 24000 |
| Available tools on tool changer (max.) | places | 12 | 15 | 17 | 20 | 20 |
| Drilling unit | ||||||
| Independent vertical spindles (max.) | n. | 12 | 12 | 12 | 12 | 12 |
| Independent horizontal spindles (max.) | n. | 6 | 6 | 6 | 6 | 6 |
| Rotation speed (max.) | rpm | 8000 | 8000 | 8000 | 8000 | 8000 |
