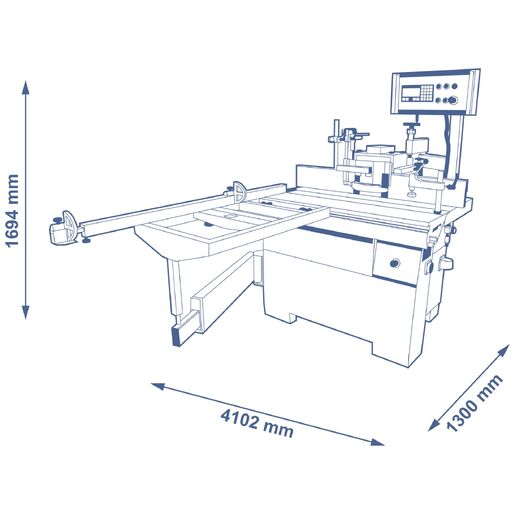

minimax tw 55es Shaper
(Price does not include taxes, shipping and installation)
The minimax tw 55es is the customizable and flexible shaper perfect for the demanding craftsmen and carpentries.
Maximum stability and rigidity in all working conditions is guaranteed thanks to a large shaper column made entirely of cast iron.
The sliding table provides exceptional precision and smoothness.
Power without compromises
The 4 standard speeds of the shaper unit are ideal for any type of machining, from moulding to routing and tenoning
Unrivalled cutting finishing
Optimal support also for larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
Ready 3 UP
The programming of the work becomes simple and effective with the electronic mobile control panel with a 4” LCD color screen. Working mode: manual, semi-automatic and automatic with a memory capacity of up to 99 programs.
"Flex One" shaper fence
Automatic adjustment of the entire fence according to the tool diameter. The "Flex" exclusion system (SCM solution) is user-friendly with precise re-positioning.
- Extruded anodized aluminium sliding table (dimensions 360 x 1200 mm) sliding on high precision hardened steel guideways, which are fixed by means of mechanical bending system
- "Ready" electronic control: electronic programmer with 3 axes which selection by keyboard and digital display for:
- the management of the spindle lifting and tilting
- the management of the automatic movement of the entire fence with respect to the tool diameter
- the manual, semi-automatic and automatic working mode with a memory capacity of up to 99 programs
- spindle moulder speed readout - “Flex One” spindle moulder fence with:
- manual adjustment of the infeed table (removal) by means of handwheel complete with mechanical numerical readout
- rapid exclusion system from the work table
- aluminium tables with connecting bars
- 240 mm max. tool diameter - Upper mobile control panel
- Tiltable spindle 90° ÷ 45°
- Spindle moulder reverse rotation
- Device for angular cutting with 2 flip-over stops
- Electric pre-setting for feeder
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- READY 3 UP version
- Tiltable spindle moulder 90° ÷ 45°
- Spindle moulder shaft of 1 1/4"
- Locking by countersunk socket screw
Technical features |
|
|
max. useful spindle length | [mm] | 125 |
spindle moulder speeds | [rpm] | 3500/6000/8000/10.000 |
max. tool diameter when profiling | [mm] | 240 |
max. diam. of tool lowered under the table at 90° | [mm] | 240 |
Other technical features: |
|
|
three-phase motors |
| 8HP, 6kW 60Hz |
exhaust outlets diameter | [mm] | 120 |
Spindle moulder diameters: |
| 1 1/4" |
For any questions concerning delivery, please contact eshopsupportus@scmgroup.com
To ensure a clear and hassle-free purchasing experience, below are the weight and dimensions of the packaged machine at the time of delivery:
| Dimensions | ||
| Lenght | in | 56 |
| Width | in | 47 |
| Height | in | 73 |
| Weight | lb | 1116 |
Before completing the purchase, the customer can choose between two delivery options:
1 - Pickup from Our Warehouse (Incoterm EXW - Ex Works)
The machine can be picked up directly from our warehouses. Prior to purchase, verify in which locations this unit is available.
2 - Delivery by Dedicated Freight Carrier (Incoterm DAP - Delivered at Place)
By selecting this option, SCM will entrust the delivery to a specialized freight carrier, ensuring secure transport managed by professionals. The service includes:
- Advance phone notice before delivery
- Hydraulic tail lift for unloading the machine from the truck
Important: Deliveries are made exclusively to the curbside, meaning the machine will be dropped off at the entrance of the building or designated location. Internal transport and positioning inside the premises are not included. If a forklift or other equipment is needed for internal movement, the customer is responsible for arranging these operations.
If the machine is purchased with the installation service, after the order is completed, SCM Service or an authorized center will contact the customer to coordinate: the installation date, the necessary equipment, he required documentation for installation.
SCM Group US is not responsible for any damages, injuries, or losses resulting from improper installation, unsafe or incorrect use of the machine, failure to follow the manufacturer’s guidelines, or any modifications made by the customer or third parties.
Customers who choose to opt out of professional installation assume full responsibility for ensuring that the machine is installed and operated in strict accordance with the provided instructions and safety standards. If you have not received the user manual, please contact us with the machine’s serial number to obtain it before installation and use.
SCM Group US disclaims all liability for any accidents, malfunctions, or consequential damages resulting from non-compliance with these guidelines.
Installation & Warranty Activation
If installation is not included in your purchase and you would like to have the machine installed by our technicians, please contact us.
If SCM installation is not required, you must complete and submit the warranty activation form (VICA) within 10 business days from the machine’s delivery date. The form will be provided with the purchase order confirmation or can be requested by contacting us. Failure to submit the form on time may result in the warranty being voided.
For any further information or assistance, please feel free to contact us.
