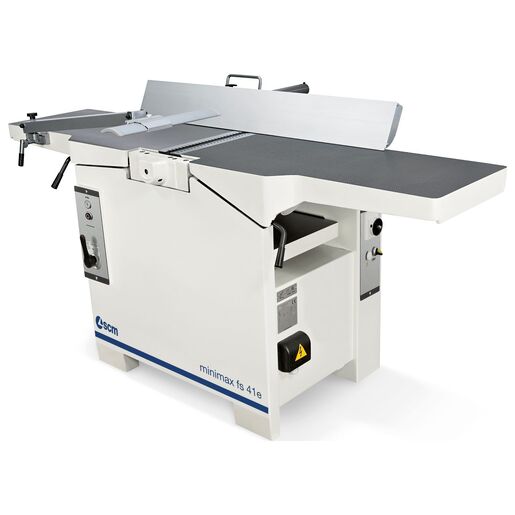

minimax fs 41e Surfacing-thicknessing planer with TERSA cutterblock
(Price does not include taxes, shipping and installation)
The minimax fs 41e jointer/planer combination machine can guarantee maximum safety and precision thanks to the “Tersa” cutter block equipped with 4 quick tightening knives and automatic adjustment.
The pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined to obtain a flawless finishing.
Professional, massive and compact, this machine is suitable for a high-flexible production and ideal for the demanding craftsman and carpentry
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
For an impeccable finish, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined
High rigid fence with a smooth movement thanks to the central locking on round bar
Maximum working safety and precision with the “Tersa” cutter block which allows the automatic knives clamping by means of the centrifugal force. The system, without fixing screws,
makes knives substitution extremely fast.
- The planer infeed roller has a helicoidal profile to guarantee firm and constant work piece feed,
- The outfeed roller in sandblasted steel maintains the perfect post-processing finishing.
- Wheels to facilitate the machine movemen
- Numerical readout for thicknessing table positioning
*Does not include power cable
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- "Tersa" cutterblock Ø 85 mm with 4 knives with rapid locking system
- Wheels for machine movement
- Numerical readout for thicknessing table positioning
- Single-phase motor 3,6kW (4,8hp) 60Hz
TECHNICAL FEATURES | ||
Planer: | ||
Useful working width | mm | 410 |
Cutter block diameter / standard knives | mm/n. | 87/3 |
Standard knives dimensions | mm | 410 x 30 x 3 |
Max. stock removal | Mm | 5 |
Surfacing tables total length | mm | 2000 |
Thicknessing table dimensions | mm | 423 x 775 |
Feed speeds on thicknesser | m/min | 6/12 |
Min. ÷ max. working height on thicknesser | mm | 3 ÷ 230 |
Min. working length on thicknesser | mm | 160 |
Other technical features: | ||
Single-phase motor | kW (hp( Hz | 3,6 (4,8) 60 |
Exhaust outlets diameter | [mm] | 120 |
MINIMUM INSTALLATION REQUIREMENTS | ||
Section of electrical cable | [mm2] | 6 (0.25”) |
Power absorption | [A] | 20 |
Voltage - frequency | 230V - 60Hz |
For any questions concerning delivery, please contact eshopsupportus@scmgroup.com
To ensure a clear and hassle-free purchasing experience, below are the weight and dimensions of the packaged machine at the time of delivery:
| Dimensions | ||
| Lenght | in | 83 |
| Width | in | 35 |
| Height | in | 46 |
| Weight | lb | 1035 |
Before completing the purchase, the customer can choose between two delivery options:
1 - Pickup from Our Warehouse (Incoterm EXW - Ex Works)
The machine can be picked up personally from our warehouses. Prior to purchase, verify in which locations this unit is available.
2 - Delivery by Dedicated Freight Carrier (Incoterm DAP - Delivered at Place)
By selecting this option, SCM will entrust the delivery to a specialized freight carrier, ensuring secure transport managed by professionals. The service includes:
- Advance phone notice before delivery
Important: Due to the size of the machine, unloading from the truck is the customer’s responsibility. A forklift or appropriate equipment will be required to safely complete the unloading process. Internal transport and positioning inside the premises are not included.
If the machine is purchased with the installation service, after the order is completed, SCM Service or an authorized center will contact the customer to coordinate: the installation date, the necessary equipment, he required documentation for installation.
SCM Group US is not responsible for any damages, injuries, or losses resulting from improper installation, unsafe or incorrect use of the machine, failure to follow the manufacturer’s guidelines, or any modifications made by the customer or third parties.
Customers who choose to opt out of professional installation assume full responsibility for ensuring that the machine is installed and operated in strict accordance with the provided instructions and safety standards. If you have not received the user manual, please contact us with the machine’s serial number to obtain it before installation and use.
SCM Group US disclaims all liability for any accidents, malfunctions, or consequential damages resulting from non-compliance with these guidelines.
Installation & Warranty Activation
If installation is not included in your purchase and you would like to have the machine installed by our technicians, please contact us.
If SCM installation is not required, you must complete and submit the warranty activation form (VICA) within 10 business days from the machine’s delivery date. The form will be provided with the purchase order confirmation or can be requested by contacting us. Failure to submit the form on time may result in the warranty being voided.
For any further information or assistance, please feel free to contact us.
