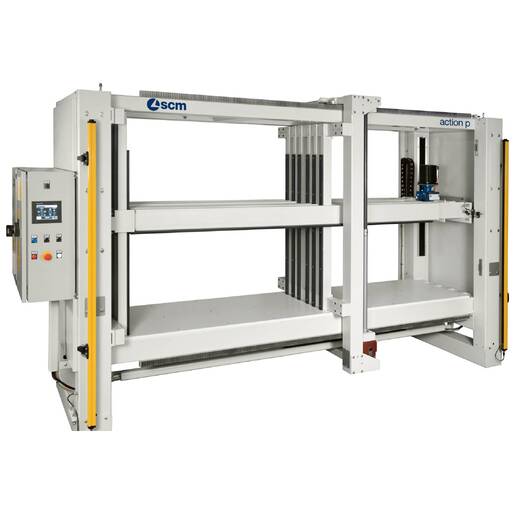

action p Electro mechanical cabinet clamp
(Price does not include taxes, shipping and installation)
The electro mechanical cabinet clamp action p with manual loading and unloading is the solution for the precise assembly of cabinets. With the touch screen monitor, it is possible to run automatic furniture pressing programs making it easy to use the clamp. The comb system guarantees a better quality with an effective pressing on the entire surface.
This electro mechanical cabinet clamp is suitable for all cabinet manufacturers, with medium productive volumes (up to 50 cabinets/shift).
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
5.7" touch screen monitor on electric panel for several automatic cabinet pressing programs
Efficient cabinet squaring by means of an integrated rack and pinion system driven by brushless motor
Horizontal and vertical pressure elements with single comb bars
- COMPLETELY AUTOMATIC CYCLE with operator interface (HMI), possibility to program pressures, cycle times and sequence of pressures
- Machine structure with welded monoblock frame that ensures better structural rigidity and facilitates the usual maintenance operations. Gear transmission, to optimize movement precision and reduce machine noise
- Upper and side mobile pressure element (Z and X direction): Controlled by Brushless motor. Precise parallel positioning using rack and pinion guides
- Workpiece alignment: the operator positions the cabinet by aligning it with the side stop on the fixed machine table.
*Does not include power cable
TECHNICAL FEATURES | ||
Maximum side thrust | Kg / Lb | 1200 / 2,650 |
Maximum vertical thrust | Kg / Lb | 1500 / 3,300 |
Side table positioning speed | mm/sec (in/sec) | 109 (4.3) |
Top table positioning speed | mm/sec (in/sec) | 96 (3.7) |
Worktable height | mm /in | 620 / 24.4” |
Minimum workpiece length | mm /in | 250 / 10” |
Maximum workpiece length | mm /in | 2500 / 98.4” |
Minimum workpiece height | mm /in | 250 / 10” |
Maximum workpiece height | mm /in | 1200 / 47” |
Minimum depth | mm /in | 250 / 10” |
Maximum depth | mm /in | 800 /31.5” |
MINIMUM INSTALLATION REQUIREMENTS | ||
Installed motor power | kW | 9 |
Usa- Canada Version Voltage /Frequency | 230V/60Hz |
For any questions concerning delivery, please contact eshopsupportus@scmgroup.com
To ensure a clear and hassle-free purchasing experience, below are the weight and dimensions of the packaged machine at the time of delivery:
| Dimensions | ||
| Lenght | in | 166 |
| Width | in | 46 |
| Height | in | 95 |
| Weight | lb | 5469 |
Before completing the purchase, the customer can choose between two delivery options:
1 - Pickup from Our Warehouse (Incoterm EXW - Ex Works)
The machine can be picked up personally from our warehouses. Prior to purchase, verify in which locations this unit is available.
2 - Delivery by Dedicated Freight Carrier (Incoterm DAP - Delivered at Place)
By selecting this option, SCM will entrust the delivery to a specialized freight carrier, ensuring secure transport managed by professionals. The service includes:
- Advance phone notice before delivery
Important: Due to the size of the machine, unloading from the truck is the customer’s responsibility. A forklift or appropriate equipment will be required to safely complete the unloading process. Internal transport and positioning inside the premises are not included.
If the machine is purchased with the installation service, after the order is completed, SCM Service or an authorized center will contact the customer to coordinate: the installation date, the necessary equipment, he required documentation for installation.
SCM Group US is not responsible for any damages, injuries, or losses resulting from improper installation, unsafe or incorrect use of the machine, failure to follow the manufacturer’s guidelines, or any modifications made by the customer or third parties.
Customers who choose to opt out of professional installation assume full responsibility for ensuring that the machine is installed and operated in strict accordance with the provided instructions and safety standards. If you have not received the user manual, please contact us with the machine’s serial number to obtain it before installation and use.
SCM Group US disclaims all liability for any accidents, malfunctions, or consequential damages resulting from non-compliance with these guidelines.
