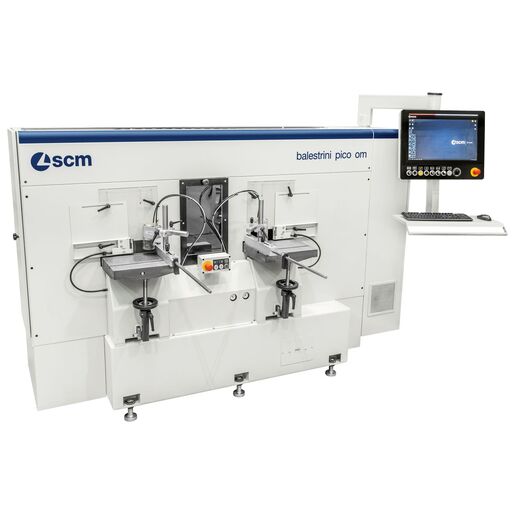

balestrini pico omn CNC Tenoning-mortising two-faced machine
(Price does not include taxes, shipping and installation)
balestrini pico omn is a cnc tenoning-mortising two-faced machine dedicated to the execution of solid wood elements for tables and chairs, such as legs, crossbars and chair backs.
Thanks to its unique design the machine has two worktables always ready to use, to switch easily from top to longitudinal machining of curved elements.
The 21,5” touch screen eye-M console, positioned on mobile support, allows to use the simple and intuitive Maestro active joint HMI.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
The 4,5 kW tenoning unit and the 2 kW mortising unit make it possible to produce tenons and mortises with a reduced number of passes.
The tenoning and mortising depth is adjusted in the parking area, which is also used for tool maintenance.
Two machines in one. Top and longitudinal machining operations are carried out on different work stations but on the same machine, thus expanding the applications and reducing overall dimensions.
The control panel placed on a mobile support follows the operator to the work station.
The full enclosure of the machine ensures protection without reducing its ease-of-use, and keeps the outside environment clean.
The side suction outlets allow to convey shavings and dust towards the extraction system.
New Human-Machine Interface with an extremely simple and effective design, which allows to select numerous macros for tenons, holes and mortises programming.
The exclusive CAD/CAM system Smart pro lite makes it a machining centre for all purposes
| TECHNICAL FEATURES | ||
Max workpiece cross-section (width x thickness): | ||
with straight cut min. | mm | 15x15 |
with straight cut max. | mm | 200 x 50 |
with 45° cut | mm | 140 x 50 |
Work-piece length | mm | min. 120 + tenon length |
Max with back reference | mm | min 880+ tenon length |
Tenon dimensions (horizontal length max) |
| 200 |
Max thickness | mm | 30 |
Depth | mm | 8 ÷ 50 |
Inclination | mm | 0° ÷ 90° |
Hole or mortise dimensions (hole diameter) | mm | 5÷16 (doubling by interpolation) |
Max mortise lenght | mm | 200 |
Mortise thickness | mm | 5÷16 (doubling by interpolation) |
Hole or mortise depth | mm | 40 |
Rear worktable performance: |
| |
Workpiece cross-section (width x thickness) | mm (min.) | 15 x 15 |
Workpiece cross-section (width x thickness) | mm (max.) | 200 x 50 |
Loading piece length | mm (min. with two jig gree) | 120 + tenon length |
Max. with one reference | mm | 880 + tenon length |
Workpiece length |
mm (min. with two jig gree) | 200 |
Workpiece length | mm (max.) | 30 |
Distance of the first hole from the reference (min.) | mm (doubling by interpolation) | 5÷16 |
Hole or mortise dimensions (hole diameter) | mm (doubling by interpolation) | 5÷16 |
Max mortise lenght | mm | 500 |
Mortise thickness | mm (doubling by interpolation.) | 5÷16 |
Hole or mortise depth | mm | 40 |
