minimax sc 2c Circular saw
€6,428.00
(Price does not include taxes, shipping and installation)
The minimax sc 2c is a precise, compact and with a low investment circular saw with tilting blade, ideal for small spaces and for those who do not want to give up the reliability of SCM joinery machines.
An important feature is the presence of the scoring unit, which can be easily adjusted from the outside of the machine, as well as a surprising cut of both thick solid wood and even upgraded panels, with the saw unit with a 315mm (12.37”)maximum diameter blade which guarantees a 100mm cutting height with installed scorer.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
The scoring unit adjustment complete with blade is carried out from outside the machine by means of with special knobs and without the necessity of keys

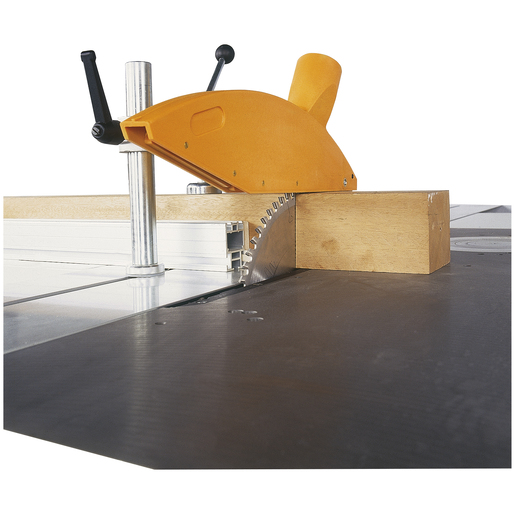

An incredible cutting with the saw unit with 315mm maximum blade diameter with the scoring blade installed
SCM Thundercut App for tablet: cutting optimizer and sequencer even for less experienced operators
- Very high effective saw unit exhaust hood: the emission level is 90% lower with respect to the maximum level allowed by the European safety regulations!

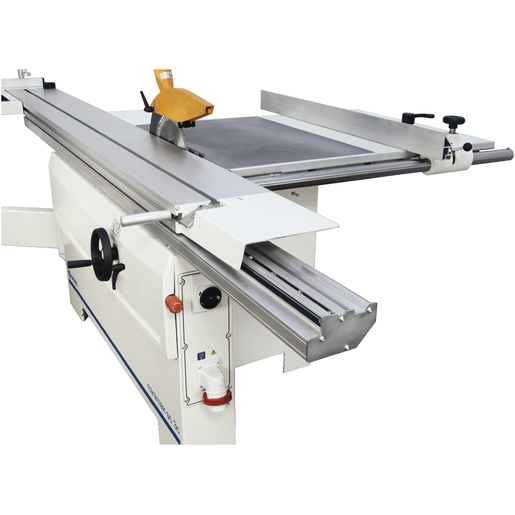

- The sliding carriage ensures top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustments required.

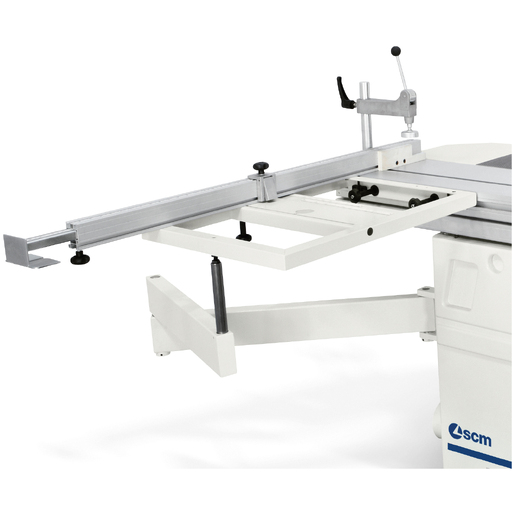

- The telescopic squaring rule is equipped with 2 flip-over stops which allow to have precise references that can be used for both profiles.
- Absolute precision and rapid positioning of the parallel fence which slides on a ground steel round bar
- Extruded aluminum fences with support and rapid locking guarantee maximum practicality
*Does not include power cable
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Belt driven scoring unit complete with blade
- Cutting width with parallel fence 1270 mm
- 2 squaring flip-over stops
- Single-phase motor 3kW (4hp) 60Hz
TECHNICAL FEATURES |
| |
Cast iron worktable dimensions | mm (in) | 1020 x 325 (40.12 x 12.81”) |
Blade tilting | mm | 90° ÷ 45° |
Max. blade diameter with scoring blade installed | mm (in) | 315 (12.37”) |
Max. saw blade projection from table at 90°/45° | mm (in) | 100/78 (3.87 / 3”) |
Max. squaring stroke | mm (in) | 1600 (62.94”) |
Cutting width on parallel fence | mm (in) | 1270 (49.94”) |
Other technical features: |
| |
Single-phase motor | 3kW (4hp) 60Hz | |
Exhaust outlets diameter | mm (in) | 120 (4.75”) |
USA version Voltage-Frequency | 230V-60Hz |
For any questions concerning delivery, please contact eshopsupportus@scmgroup.com
To ensure a clear and hassle-free purchasing experience, below are the weight and dimensions of the packaged machine at the time of delivery:
| Dimensions | ||
| Lenght | in | 78 |
| Width | in | 45 |
| Height | in | 45 |
| Weight | lb | 866 |
Before completing the purchase, the customer can choose between two delivery options:
1 - Pickup from Our Warehouse (Incoterm EXW - Ex Works)
The machine can be picked up directly from our warehouses. Prior to purchase, verify in which locations this unit is available.
2 - Delivery by Dedicated Freight Carrier (Incoterm DAP - Delivered at Place)
By selecting this option, SCM will entrust the delivery to a specialized freight carrier, ensuring secure transport managed by professionals. The service includes:
- Advance phone notice before delivery
- Hydraulic tail lift for unloading the machine from the truck
Important: Deliveries are made exclusively to the curbside, meaning the machine will be dropped off at the entrance of the building or designated location. Internal transport and positioning inside the premises are not included. If a forklift or other equipment is needed for internal movement, the customer is responsible for arranging these operations.
If the machine is purchased with the installation service, after the order is completed, SCM Service or an authorized center will contact the customer to coordinate: the installation date, the necessary equipment, he required documentation for installation.
SCM Group US is not responsible for any damages, injuries, or losses resulting from improper installation, unsafe or incorrect use of the machine, failure to follow the manufacturer’s guidelines, or any modifications made by the customer or third parties.
Customers who choose to opt out of professional installation assume full responsibility for ensuring that the machine is installed and operated in strict accordance with the provided instructions and safety standards. If you have not received the user manual, please contact us with the machine’s serial number to obtain it before installation and use.
SCM Group US disclaims all liability for any accidents, malfunctions, or consequential damages resulting from non-compliance with these guidelines.
Installation & Warranty Activation
If installation is not included in your purchase and you would like to have the machine installed by our technicians, please contact us.
If SCM installation is not required, you must complete and submit the warranty activation form (VICA) within 10 business days from the machine’s delivery date. The form will be provided with the purchase order confirmation or can be requested by contacting us. Failure to submit the form on time may result in the warranty being voided.
For any further information or assistance, please feel free to contact us.
