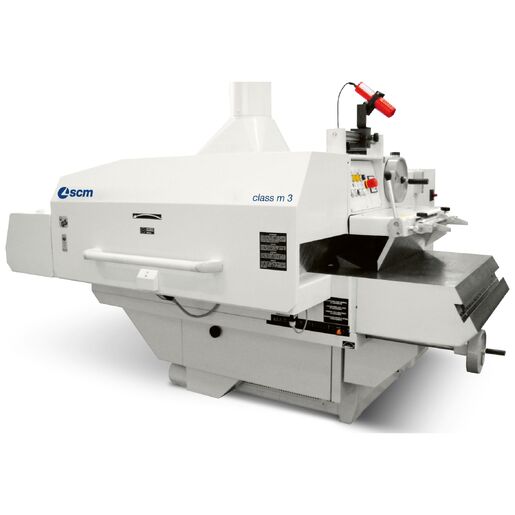

class m 3 Automatic multiblade rip saw
(Steuern, Versand und Installation sind im Preis nicht enthalten.)
For the maximum safety class m 3 is equipped with 4 anti-kickback finger barriers: three top and one bottom and a chip deflector screen between the three top barriers.
Practical and easy to use: the infeed fence is fitted with selflocking lever which can be operated single-handed.
Extremely substantial feed belt which is directly driven through its robust belt links,
without the interposition of chains so as to ensure high straighteness.
The conical coupling of the saw blade shaft sleeve with the base of spindle ensures longer blade life and higher output.
-
Cast-iron monoblock base for the maximum structural rigidity
-
Setting up operations can be carried out rapidly: the adjustment of spindle, pressure rollers and feed speed is carried out by hand wheels according to graduated scale and direct reading.
-
The perfect belt straightness is due to the sliding guides, one of which has a prismatic shape, made with a low friction coefficient
-
Great practicality: the feed belt is equipped with automatic lubrication
-
A clutch on the belt feed variator ensures total safety in the event of accidental stopping
-
The centralized control panel is equipped with an ammeter to allow the operator to obtain maximum performance without overloading the motor
-
Unwanted movement of saw blade shaft sleeve is prevented by the aggressive surface of the feed belt and the 4 pressure rollers (2 in front and 2 behind the blades). These advanced features ensure maximum straightening and excellent cutting quality, minimizing the quantity of stock removal in successive machining.
-
The saw blade shaft sleeve can be quickly fitted into spindle and easily locked with a special key.
-
Extra shaft sleeve with rings and flanges 95 mm for 300 mm blade diam., 100mm max. workpiece height
-
Exceptional power! 60 hp at the disposal of the blades!
| Technical data |
|
| Max. width of blades pack | 300 mm |
| Feed track width | 300 mm |
| Max. blade diameter | 350 mm |
| Min. blade diameter | 200 mm |
| Minimum workpiece length | 390 mm |
| Sawblade sleeve diam. (blade bore) | 70 mm |
| Keys dimensions on the sawblade sleeve | 20 x 5 mm |
| Blades rotation speed | 4.200 rpm |
| Continuously adjustable feed track speed | 6 ÷ 48 rpm |
| Worktable height from floor | 750 mm |
| Distance between base and first blade on right part | 200 mm |
| Worktable dimensions | 1.530 x 950 mm |
| Exhaust outlet diameter for blades | 200 mm |
| Exhaust outlet diameter for feed track | 120 mm |
| Volume of exhaust air outlet at 25m/sec | 3.850 m3/h |
| Main motor power at 60Hz | 60 Hp |
| Feed belt motor power at 60Hz | 2,4 hp |
| MINIMUM INSTALLATION REQUIREMENTS |
|
|
| Compressed air consumption | Nl/cycle | 60 |
| Exhaust air consumption | m³/h | 3850 |
| Air speed for intake | m/sec | 25 |
| Installed power (minimum) | kVA | 40 |
| Rated current | A | 83 |
| Exhaust outlet diameter | mm | N.1x120 + N.1x200 |
| USA-CANADA version – Voltage /Frequency |
| 460 / 60 |
For any questions concerning delivery, please contact eshopsupportus@scmgroup.com
To ensure a clear and hassle-free purchasing experience, below are the weight and dimensions of the packaged machine at the time of delivery:
| Dimensions | ||
| Lenght | in | 80 |
| Width | in | 86 |
| Height | in | 60 |
| Weight | lb | 4629 |
Before completing the purchase, the customer can choose between two delivery options:
1 - Pickup from Our Warehouse (Incoterm EXW - Ex Works)
The machine can be picked up personally from our warehouses. Prior to purchase, verify in which locations this unit is available.
2 - Delivery by Dedicated Freight Carrier (Incoterm DAP - Delivered at Place)
By selecting this option, SCM will entrust the delivery to a specialized freight carrier, ensuring secure transport managed by professionals. The service includes:
- Advance phone notice before delivery
Important: Due to the size of the machine, unloading from the truck is the customer’s responsibility. A forklift or appropriate equipment will be required to safely complete the unloading process. Internal transport and positioning inside the premises are not included.
If the machine is purchased with the installation service, after the order is completed, SCM Service or an authorized center will contact the customer to coordinate: the installation date, the necessary equipment, he required documentation for installation.
SCM Group US is not responsible for any damages, injuries, or losses resulting from improper installation, unsafe or incorrect use of the machine, failure to follow the manufacturer’s guidelines, or any modifications made by the customer or third parties.
Customers who choose to opt out of professional installation assume full responsibility for ensuring that the machine is installed and operated in strict accordance with the provided instructions and safety standards. If you have not received the user manual, please contact us with the machine’s serial number to obtain it before installation and use.
SCM Group US disclaims all liability for any accidents, malfunctions, or consequential damages resulting from non-compliance with these guidelines.
Installation & Warranty Activation
If installation is not included in your purchase and you would like to have the machine installed by our technicians, please contact us.
If SCM installation is not required, you must complete and submit the warranty activation form (VICA) within 10 business days from the machine’s delivery date. The form will be provided with the purchase order confirmation or can be requested by contacting us. Failure to submit the form on time may result in the warranty being voided.
For any further information or assistance, please feel free to contact us.
