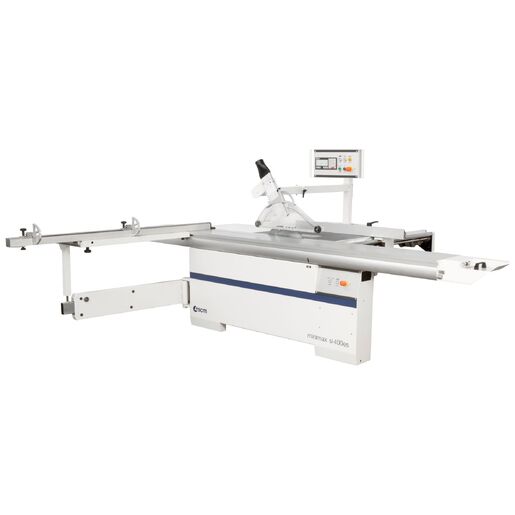

minimax si 400es Circular saw with tilting blade
(Escluso IVA, spese di spedizione e installazione)
The minimax si 400es is the professional circular saw with tilting blade perfect for those who requires quality without compromises, precision and smoothness.
Perfect and easy cuttings of veneer panels and thick solid wood material are ensured by the cast iron saw unit composed by a rigid closed loop structure and a scoring blade unit.
The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard.
An optimal support is given also to larger pieces thanks to the sliding table 360 mm wide.
INSTALLAZIONE SI 400ESPer questo modello è obbligatoria l'installazione da parte di un tecnico SCM.
Unique in the world in its category!
The cast iron saw unit with a rigid closed loop structure can accommodate a blade of max. 400 mm diameter with the scoring blade mounted, ensuring perfect and easy cutting of veneer panels and thick solid wood material. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard. The rotation fulcrums of the saw unit have a 120 mm diameter and stand on steady crescent shaped rests that separate it from the base: a rigid reliable solution.
Unrivalled cutting finishing
Optimal support also to larger pieces, with the sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
Simple and quick
The “Ready” control manages the powered and programmed movement of the saw blade unit increasing productivity and working quality.
-
Optimizer/Sequencer App for Tablet: SCM Thundercut:
Application to be downloaded from the App Store or Paly Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems.
It can be activated using the QR code supplied with the machine. The App allows to:
-manage your machine stock and the material and panel magazine
-create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists
-optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App.
-set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step.
-print labels with bar code to identify the various parts, thanks to the Bluetooth connection with compatible label printers.
-
Automatic positioning of the parallel fence, from the overhead mobile “Ready” control panel (3 axes): programmed or manual fence movement with a hold-down drive for the maximum versatility.
-
Cast iron saw unit, with lifting system by means of "dove-tail" guideways and tilting on high rigidity sliding side trunnions, complete with scoring unit with independent motor and external setting up
-
Extruded anodized aluminium sliding table (dimensions 360 x 2600 mm) sliding on high precision hardened steel guideways, which are fixed by mean of mechanical bending system
-
Squaring frame (dimensions 1200 x 650 mm) complete with:
-telescopic fence with 2 flip-over stops and metric rule tilted toward the operator
-eccentric clamp
-swinging arm support
-idle roller to facilitate the panel loading/unloading
-
Dedicated saw parallel fence
-
Readout of sawblades tilt on the machine front side
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Version with maximum squaring stroke 3200 mm
- "DADO SET" capability
- "READY 3 UP" version (3 axes)
- 400 mm saw blade
Technical features |
|
|
cast iron saw-spindle moulder worktable dimensions | [mm] | 940 x 560 |
blades tilting |
| 90° ÷ 45° |
max. saw blade diam. with scoring blade installed | [mm] | 400 |
max. saw blade projection from table at 90°/45° | [mm] | 136/97 |
scoring blade diameter | [mm] | 120 |
squaring stroke (standard) | [mm] | 3200 |
cutting width on parallel fence | [mm] | 1270 |
Other technical features: |
|
|
three-phase motor S6 |
| 6kW (8hp) 60Hz |
three-phase motor (scoring) |
| 0,75kW 1hp 60Hz |
exhaust outlets diameter | [mm] | 120 |
Voltage - frequency | 220V - 60Hz |
For any questions concerning delivery, please contact eshopsupportus@scmgroup.com
To ensure a clear and hassle-free purchasing experience, below are the weight and dimensions of the packaged machine at the time of delivery:
| Dimensions | ||
| Lenght | in | 132 |
| Width | in | 54 |
| Height | in | 46 |
| Weight | lb | 1454 |
Before completing the purchase, the customer can choose between two delivery options:
1 - Pickup from Our Warehouse (Incoterm EXW - Ex Works)
The machine can be picked up personally from our warehouses. Prior to purchase, verify in which locations this unit is available.
2 - Delivery by Dedicated Freight Carrier (Incoterm DAP - Delivered at Place)
By selecting this option, SCM will entrust the delivery to a specialized freight carrier, ensuring secure transport managed by professionals. The service includes:
- Advance phone notice before delivery
Important: Due to the size of the machine, unloading from the truck is the customer’s responsibility. A forklift or appropriate equipment will be required to safely complete the unloading process. Internal transport and positioning inside the premises are not included.
If the machine is purchased with the installation service, after the order is completed, SCM Service or an authorized center will contact the customer to coordinate: the installation date, the necessary equipment, he required documentation for installation.
SCM Group US is not responsible for any damages, injuries, or losses resulting from improper installation, unsafe or incorrect use of the machine, failure to follow the manufacturer’s guidelines, or any modifications made by the customer or third parties.
Customers who choose to opt out of professional installation assume full responsibility for ensuring that the machine is installed and operated in strict accordance with the provided instructions and safety standards. If you have not received the user manual, please contact us with the machine’s serial number to obtain it before installation and use.
SCM Group US disclaims all liability for any accidents, malfunctions, or consequential damages resulting from non-compliance with these guidelines.
Installation & Warranty Activation
If installation is not included in your purchase and you would like to have the machine installed by our technicians, please contact us.
If SCM installation is not required, you must complete and submit the warranty activation form (VICA) within 10 business days from the machine’s delivery date. The form will be provided with the purchase order confirmation or can be requested by contacting us. Failure to submit the form on time may result in the warranty being voided.
For any further information or assistance, please feel free to contact us.
