minimax sc 2c Circular saw with tilting blade
10% online discount
£6,537.60(Price does not include VAT and delivery)
The minimax sc 2c compact panel saw with an extensive range of standard features. This machine is designed for efficiency and versatility in a limited workshop space. It includes an aluminum sliding table with a 1660mm stroke, a scoring saw for minimizing chipping and breakout, and a large ripping capacity of 900mm to the right of the blade. With a 300mm blade capacity and a powerful 3hp motor, this sliding table saw delivers accuracy, repeatability, and reliability. The combination of the aluminum sliding table and support table enables easy handling of large sheet sizes, ensuring precise cuts with a superior finish.
Added to Your Shopping Cart
Available 1
Item ready for delivery
INSTALLATION SC 2C
Incredible cutting with the new saw unit and sliding table
SCM Thundercut App for tablet: cutting optimizer and sequencer even for less experienced operators
- Very high effective saw unit exhaust hood: the emission level is 90% lower with respect to the maximum level allowed by the European safety regulations!

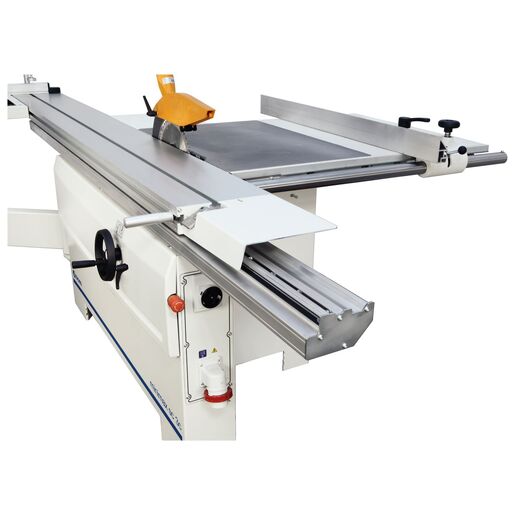

- The sliding carriage ensures top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustments required.
- The telescopic squaring rule is equipped with 2 flip-over stops which allow to have precise references that can be used for both profiles.
- Absolute precision and rapid positioning of the parallel fence which slides on a ground steel round bar
- Extruded aluminum fences with support and rapid locking guarantee maximum practicality
- Saw unit with scoring blade (option) installed (blade not included)
MACHINE CONFIGURATION
(Options and accessories included with this machine)

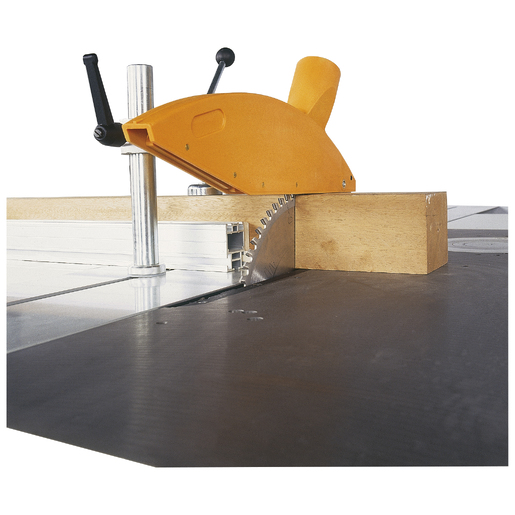

- Overhead blade protection (900 mm cutting width)
- Belt driven scoring unit complete with blade
- 2 squaring flip-over stops
- Single-phase motor 2,2kW (3hp) 50Hz
| TECHNICAL FEATURES | ||
| Cast iron worktable dimensions | [mm] | 1020 x 325 |
| Blades tilting | 90° ÷ 45° | |
| Max. saw blade diam. with scoring blade installed | [mm] | 315 |
| Max. saw blade projection from table at 90°/45° | [mm] | 100/78 |
| Max. squaring stroke (standard) | [mm] | 1600 |
| Cutting width on parallel fence (standard) | [mm] | 900 |
| Other technical features: | ||
| Single-phase motor S6 | 2,2kW (3hp) 50Hz | |
| Exhaust outlet diameter | [mm] | 120 |
