minimax t 124 Wood turning lathe

£5,683.00

10% online discount

£5,114.70

(Price does not include VAT and delivery)

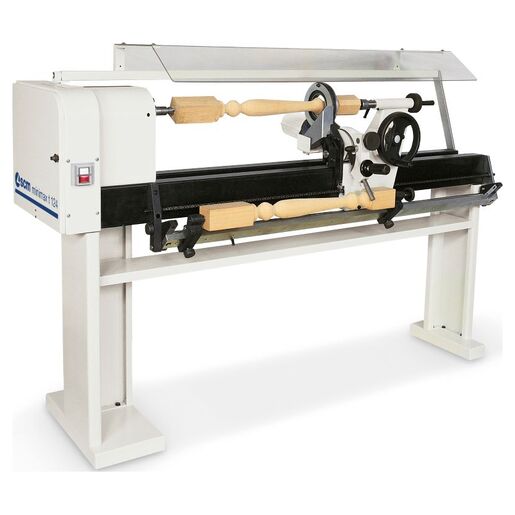

The minimax t124 wood turning lathe contains all the features that a good lathe must have: power, speed, weight, stabilityandstiffness The power must be adequate to the size of the piece being machined, this is why the minimax woodturning lathes have a power of 1,5kW and 4 speeds (570 / 1000 / 1850 / 2500 rpm) so they can machine small and large pieces. The stability, the weight and the stiffness are three elements that are strictly linked to each other; The main characteristic is the size (width and thickness) of the woodturning lathe body and the size and weight of the legs of the base; for this reason the minimax woodturning lathe stands out from the rest thanks to its sturdiness and stability that guarantee extremely precise machining.

Available 1


Item ready for delivery

Contact us INSTALLAZIONE T/124 | INSTALLAZIONE T/124
For this model the SCM installation is required.

Transparent guard for the total operator safety

Versatile for any all use necessity due to the full range of devices

Copier enables copying work at diameters greater or smaller than the template of pattern. Feed by hand-wheel.

  • Maximum reliability and precision, with its strong base
  • The copier device enables copying work at diameters greater or smaller than the template or pattern, and has a feed by hand-wheel
  • The mobile steady rest, with pre-cutting tool, guarantees a perfect finishing
  • Chuck, 125 mm diameter
  • Screw chuck diam. 70 mm

MACHINE CONFIGURATION
(Options and accessories included with this machine)

  • Single-phase motor 1,5kW (2hp) 50Hz - 1,8kW (2,5hp) 60Hz
  • Fixed rest complete with support
  • Mobile rest with pre-cutting tool, max diam. 80 mm
  • Chuck, 125 mm diameter
  • Screw chuck diam. 70 mm

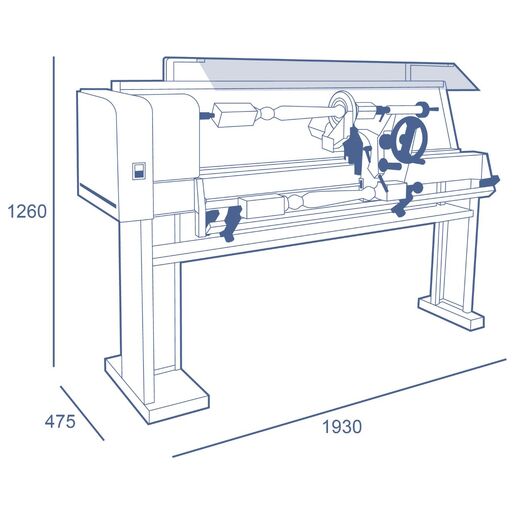

TECHNICAL FEATURES
Distance between centres[mm]1150
Centres height[mm]200
4 chuck speeds (at 50 Hz)[rpm]570/1000/1850/2500
Tape drive with morse taper[n.]2
Ball bearing centre with morse taper[n.]2
Faceplate diameter[mm]130
Three-phase motor S6 1,5kW (2hp) 50Hz - 1,8kW (2,5hp) 60Hz
Machine equipped with copying device (option):
Max. working length[mm]1120
Max. diameter[mm]200
And equipped with mobile rest (option):
Max. working length[mm]1070
Max. diameter[mm]80
