minimax sc 3c Circular saw with tilting blade
10% online discount
£7,209.00(Price does not include VAT and delivery)
The minimax sc 3c is a precise, compact and with a low investment circular saw with tilting blade, ideal for small spaces and for those who do not want to give up the reliability of SCM joinery machines.
An important feature is the presence of the scoring unit, which can be easily adjusted from the outside of the machine, as well as a surprising cut of both thick solid wood and even upgraded panels, with the saw unit with a 315 mm maximum diameter blade which guarantees a 100 mm cutting height with installed scorer.
Added to Your Shopping Cart
Available 3
Item ready for delivery
INSTALLATION SC 3C
An incredible cutting with the saw unit with 315mm maximum blade diameter with the scoring blade installed
SCM Thundercut App for tablet: cutting optimizer and sequencer even for less experienced operators
Large squaring frame with professional telescopic swinging arm support
5 kW main motor power: no compromise in machining
- Very high effective saw unit exhaust hood: the emission level is 90% lower with respect to the maximum level allowed by the European safety regulations!

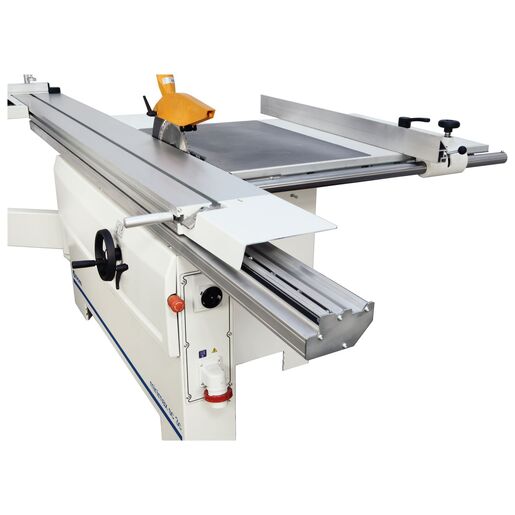

- The sliding carriage ensures top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustments required.
- The telescopic squaring rule is equipped with 2 flip-over stops which allow to have precise references that can be used for both profiles.

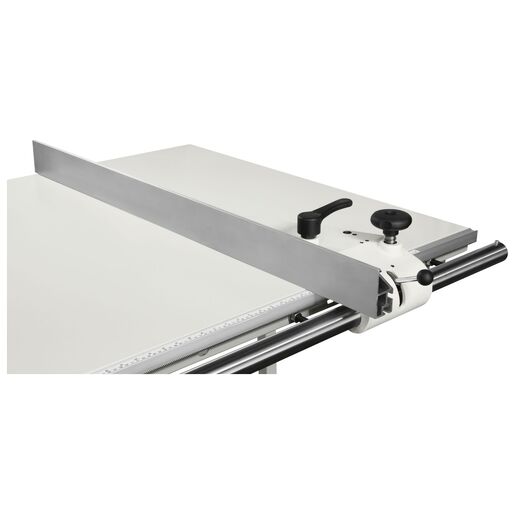

- Absolute precision and rapid positioning of the parallel fence which slides on a ground steel round bar
- Extruded aluminum fences with support and rapid locking guarantee maximum practicality.
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Belt driven scoring unit complete with blade
- Lama sega 300mm
| TECHNICAL FEATURES | ||
| Circular saw: | ||
| Cast iron saw-spindle moulder worktable dimensions | [mm] | 840 x 560 |
| Blades tilting | 90° ÷ 45° | |
| Max. saw blade diam. with scoring blade installed | [mm] | 315 |
| Max. saw blade projection from table at 90°/45° | [mm] | 100/78 |
| Max. squaring stroke (standard) | [mm] | 2250 |
| Cutting width on parallel fence (standard) | [mm] | 900 |
| Other technical features: | ||
| Three-phase motors S6 | 5kW (6,6hp) 50Hz - 6kW (8hp) 60Hz | |
| Exhaust outlets diameter | [mm] | 120 |
