me 20 Automatic edge bander with glue pot
10% online discount
£9,063.90(Price does not include VAT and delivery)
me 20 is the automatic edge bander with glue designed for professional craftsmen and joineries that wants to edge band melaminic edges, PVC and ABS up to 2 mm and wooden strips up to 5 mm.The very best finishing of the panel edge is guaranteed by the exclusive solution of the panel conveying belt, which prevents the panel having the feed affected by the typical pulses generated by the pinion of atraditional feed track and ensures a smooth and linear panel movement.The control panel with the 4' graphic display and keyboard with LED 'soft touch' keys ensures a simple and intuitive machine setting and operation.
Available 1
Item ready for delivery
INSTALLATION ME20
Panel conveying track: designed for a perfect finish
The very best finishing of the panel edge is guaranteed by the panel conveying track (exclusive solution), which prevents the panel having the feed affected by the typical pulses generated by the pinion of a traditional feed track and ensures a smooth and linear panel movement.
Gluing unit: ideal edge application
The glue is heated rapidly and evenly by the resistances. The automatic lowering of the glue temperature after a temporary halt in production when using the machine avoids burning of the glue. A new innovative system of self-lubrication of the glue pot allows a more extensive use of the edge banding machine without the necessity of lubrication.

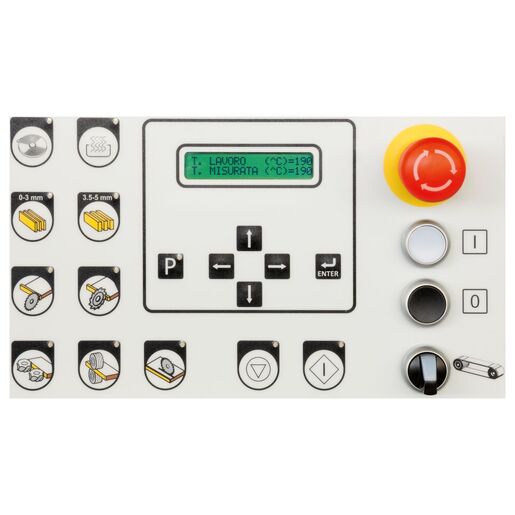

Control system: simple and intuitive
Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The plc guides the operator during maintenance, cleaning, diagnostic operations, etc.
End cutting unit for the cut at 90° on the leading and trailing edges of the panel. Possibility to exclude the unit from the control panel.
Superposed trimming unit equipped with vertical copying pads for an accurate positioning of tools with reference to the cutting point.
Absolute precision offered by the end-cutting unit, with a cutter and an independent asynchronous motor
- Machine frame made of steel, single-block base to guarantee an excellent support for the operating units
- Friction-free worktable with n.3 rollers
- Panel-to-use in any working conditions
- Panel feed by means of a top feeder with high-adherence toothed belt with steel cables inside
- Feeder manual lifting with positioning of all operating units synchronised with the feeder and based on the panel height
- Numeric readout of the selected panel
- Telescopic front support with rollers for all the machine length
- Anodized aluminium outfeed fence
- Glue smokes specific exhaust outlet; centralized exhaust outlet of the other dusts
- Safety enclosure
- Electrical cabinet with PLC, padlockable main switch and overload protection
- Emergency pushbutton
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Single-phase version 50 Hz
| TECHNICAL FEATURES | ||
| Worktable dimensions | [mm] | 1950 x 180 |
| Worktable height | [mm] | 904 |
| Thickness of rolled edges | [mm] | 0,4 ÷ 2 |
| Max. thickness of edges in strips | [mm] | 5 |
| Min. ÷ max. working height | [mm] | 12 ÷ 50 |
| Min. panel length/width with rolled edges | [mm] | 180/65 |
| Min. panel length (frontal end cutting only) | [mm] | 120 |
| Feed motor power | [kW] | 0,25 |
| Feed speed | [m/min] | 6 |
| Pneumatic operating pressure | [bar] | 6,5 |
| Operating temperature | [°C] | 190 |
| Exhaust outlet diameter (base) | [mm] | 120 |
| Exhaust outlet diameter (glue pot) | [mm] | 60 |
| Glue pot unit: | ||
| Motor power | [kW] | 0,18 |
| Glue capacity | [kg] | 0,5 |
| Trimming unit: | ||
| Motor power | [kW] | 0,55 |
| Widia cutters | Ø 75 mm Z4 | |
| Cutters rotation speed | [rpm] | 12.000 |
