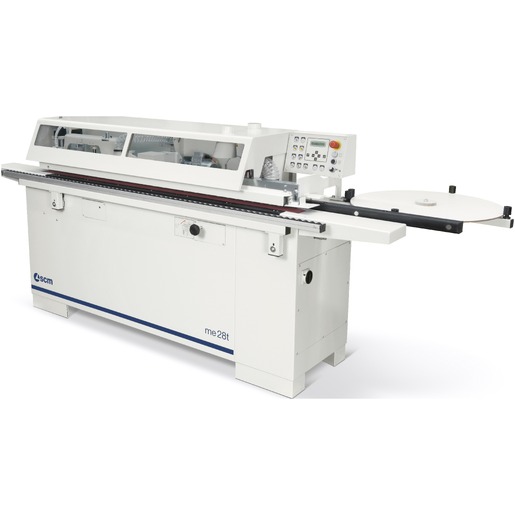

me 28t Automatic edgebander with glue pot - 3ph
$20,475.00
(Price does not include taxes, shipping and installation)
The me 28t is an automatic edgebander with a glue pot and pre-milling unit. This guarantees a perfect panel edge surface before the gluing operation through the removal operation of the pre-milling unit with diamond tool that corrects any panel imperfections caused by the saw cutting process and panel storage.
With this automatic edge bander it is possible to edge band, with great flexibility, with melamine edges, PVC and ABS up to 3 mm and wooden strips up to 5 mm.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Incoming 1
Item currently in production

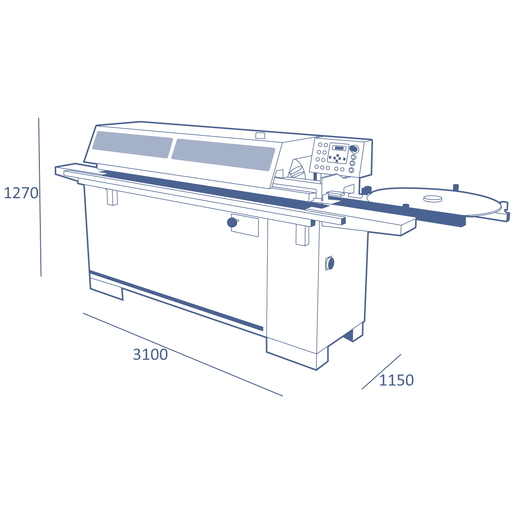

ME28T INSTALLATION
Perfect panel edge surface before the gluing operation through the removal operation of the pre-milling unit with diamond tool that corrects any panel imperfections caused by the saw cutting process and panel storage
The very best finishing of the panel edge is also guaranteed by the panel conveying track (exclusive solution), which prevents the panel having the feed affected by the typical pulses generated by the pinion of a traditional feed track and ensures a smooth and linear panel movement
Error-free machining is ensured by the simple and intuitive control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.
Absolute precision offered by the end-cutting unit, with a cutter and an independent asynchronous motor.
The edge scraping unit grants high finishing quality of plastic material edges thanks to the radius knives that ensure the complete elimination of any marks left from the trimming unit tools. The brushing unit with tilted, vertically adjustable motors optimizes the cleaning/polishing action on the panel edge
STANDARD EQUIPMENT
- Control panel on machine infeed side
- Machine frame made of high rigidity ribbed steel to guarantee an excellent support for the operating units
- Top thick steel pressure beam with rubber coated wheels
- SCM exclusive feed truck
- Panel support roller which can be extended on the entire length of the machine
- Numeric indicator of the selected panel thicknes
- Exhaust outlet dedicated to glue smokes; centralized extraction of the other dusts
- Manual adjustment of top beam with automatic positioning of the operating units according to the selected panel thickness
TOOLING INCLUDED
- Qty. 1 pre mill diamond cutters
- 2 mm radius tooling set
- Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog
SAFETY/PROTECTIONS
- safety enclosure
- Main power switch can be locked in the off position with a padlock
- Emergency pushbutton located on the control panel
MACHINE CONFIGURATION
Options and accessories included in this quotation
- 40.45USA safety regulations version
- 07.51220 volt
- 12.15Frequency 60 hz
- 23.36Me 28t SP - Usa/Canada version
- PRE-MILLING UNIT
- Complete with 1 diamond tools, 80 mm diameter.
- It is equipped with exhaust hood and an air blower which cleans the panel from dust and chips.
- 4 possible removals: 0.5 -1 -1.5 - 2 mm thickness.
- Vertically adjustable
- GLUE POT UNIT, EDGE LOADING AND PRESSING SYSTEM
- Hot melt glue with quick heat up system and internal teflon coating to allow an easy glue change
- Glue application on the panel by a glue spreading roller
- Temperature adjustment of the glue integrated in the control
- Device for automatic recovery of unused glue
- Automatic edge loading system for rolled edges with shear device for 3 mm max. thickness edges
- Coil holder plate, 730 mm diameter
- Pressing unit with n. 2 edge steel pressure rollers
- Adjustable infeed fence with numeric readout
- Automatic lowering of the glue pot temperature after a temporary non-use of the machine
- END CUTTING UNIT
For 90° end cutting of front and rear exceeding edge.
The blade alignment with reference to the cutting point is carried out using a copying device which ensures a constant and precise cutting under any working condition.
-
TOP and BOTTOM TRIMMING UNIT
Equipped with one motor and with vertical and horizontal pads for an accurate positioning of tools with reference to the cutting point.
The edge thickness is shown by a numeric readout.
Changing between radius* and flat trimming can be easily performed by ajusting the tool position.
It allows the trimming of 1-2-3 mm* PVC/ABS edges.
Pair of knives included.*Based on machine configuration – see tooling included
-
EDGE SCRAPING UNIT
For the finishing of 1-2-3 mm* PVC/ABS edges.
It assures an excellent vibration free finish thanks to its high rigidity structure.
High working precision thanks to the horizontal and vertical copying pads (with chrome plated surfaces), which assure an accurate positioning of the knives in relation to the cutting point.-Manual exclusion of the unit
*Based on machine configuration – see tooling included
-
BRUSHING UNIT
Tilted, vertically adjustable motors to optimize the cleaning and polishing of the edge. - 08.06.82 Triple wall package
- 10.99.91 Machine language: ENGLISH
*Does not include power cable
TECHNICAL SPECIFICATIONS
| Worktable dimensions | 2900 x 570 mm (114.12” x 22.44”) |
| Worktable height | 904 mm (35.56”) |
| Thickness of rolled edges | 0.4 - 3 mm (0.02 – 0.06”) |
| Thickness of edges in strips | Up to 5 mm (0.19”) |
| Min. ÷ max. panel height *using the profile scraping | 12 - 50 mm (0.5 – 1.94”) *16 - 50 mm (0.62 – 1.94”) |
| Min. panel length/width with rolled edges | 190 / 110 mm (7.5 – 4.31”) |
| Feed speed | 7 m/min ( 23 ft/min) |
| Feed motor power | 0.65 kW |
| Operating temperature | 20 – 190 °C (68 – 374 °F) |
| PREMILLING UNIT | |
| Motor | 3 kW - 7000 rpm |
| diamond cutter | Ø 80 mm H=56 Z2 |
| Stock removal | 0.5 / 1 / 1.5 / 2 mm (0 – 0.08”) |
| GLUE POT UNIT | |
| Motor | 0.21 kW |
| Glue capacity | ~0.8 kg (2 lbs) |
| END CUTTING UNIT | |
| Motor | 0.45 kW - 12000 rpm |
| Blade | Ø 90 mm Z20 |
| TOP and BOTTOM TRIMMING UNIT | |
| Motor | 2 x 0.9 kW - 12000 rpm |
| Widia cutters | Ø 75 mm Z4 |
| BRUSHING UNIT | |
| Motor power | 2 x 0.17 kW - 2800 rpm |
| Exhaust outlets diameter: no. 1 pre-milling unit outlets no. 1 glue pot outlet no. 1 trimming unit outlets |
80 mm (3.12”) 60 mm (2.31”) 120 mm (4.69”) |
| Installation requirements | |
| Nominal extraction air consumption | 1380 m3/h (800 CFM) |
| Air exhaust speed | 20 m/s (66 ft/s) |
| Pneumatic operating pressure | 6.5 bar |
| Electrical requirements ***subject to change; must be verified prior to installation*** | 220 V – 60 Hz – 3phase – ~27 A
|
For any questions concerning delivery, please contact eshopsupportus@scmgroup.com
To ensure a clear and hassle-free purchasing experience, below are the weight and dimensions of the packaged machine at the time of delivery:
| Dimensions | ||
| Lenght | in | 101 |
| Width | in | 35 |
| Height | in | 62 |
| Weight | lb | 1315 |
Before completing the purchase, the customer can choose between two delivery options:
1 - Pickup from Our Warehouse (Incoterm EXW - Ex Works)
The machine can be picked up personally from our warehouses. Prior to purchase, verify in which locations this unit is available.
2 - Delivery by Dedicated Freight Carrier (Incoterm DAP - Delivered at Place)
By selecting this option, SCM will entrust the delivery to a specialized freight carrier, ensuring secure transport managed by professionals. The service includes:
- Advance phone notice before delivery
Important: Due to the size of the machine, unloading from the truck is the customer’s responsibility. A forklift or appropriate equipment will be required to safely complete the unloading process. Internal transport and positioning inside the premises are not included.
If the machine is purchased with the installation service, after the order is completed, SCM Service or an authorized center will contact the customer to coordinate: the installation date, the necessary equipment, he required documentation for installation.
SCM Group US is not responsible for any damages, injuries, or losses resulting from improper installation, unsafe or incorrect use of the machine, failure to follow the manufacturer’s guidelines, or any modifications made by the customer or third parties.
Customers who choose to opt out of professional installation assume full responsibility for ensuring that the machine is installed and operated in strict accordance with the provided instructions and safety standards. If you have not received the user manual, please contact us with the machine’s serial number to obtain it before installation and use.
SCM Group US disclaims all liability for any accidents, malfunctions, or consequential damages resulting from non-compliance with these guidelines.
Installation & Warranty Activation
If installation is not included in your purchase and you would like to have the machine installed by our technicians, please contact us.
If SCM installation is not required, you must complete and submit the warranty activation form (VICA) within 10 business days from the machine’s delivery date. The form will be provided with the purchase order confirmation or can be requested by contacting us. Failure to submit the form on time may result in the warranty being voided.
For any further information or assistance, please feel free to contact us.
