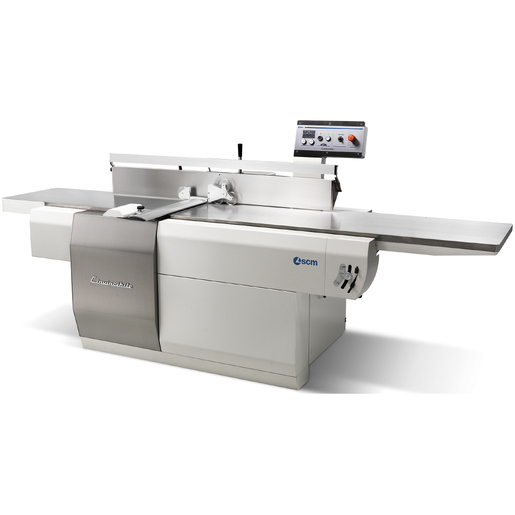

L'invincibile f 7 Jointer
$22,394.74
(Price does not include taxes, shipping and installation)
The advantages of an exclusive choice.
Buying a "L'invincibile" machine means you get a customized solution, thanks to experience, technical research and Italian creativity.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Available 2
Item ready for delivery
Total absence of vibration thanks to the large worktables made from ribbed cast-iron and more than 3m long
The movement of the tables by means of a parallelogram kinetic mechanism, operating directly on the connecting rods, avoids any exertion to the tables assuring constant planarity over time
The movement of the infeed table by means of a parallelogram kinetic mechanism always gives the same distance between the cutterblock and the table
Perfect joints every time with concave/convex device. The available settings allow perfect bonding of the pieces giving excellent coupling and eliminating any joint line
The “Xylent” spiralknives cutter block gives an exceptional finish with reduced noise during machining thus to provide a more comfortable working environment
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- "Xylent" spiralknife cutterblock with 3 series of knife
- 10 spare inserts kit (15x15x2,5) for Xylent spindle
| TECHNICAL FEATURES | ||
| Cutterhead working width | mm / in | 520 / 20 |
With XYLENT Spiral Helical Cutterhead: | mm/n° | 120/84 |
Dimensions of standard knives | mm | 15 x 15 x 2.5 |
| Jointer bed length | mm / in | 3008 / 118 |
| Other technical features: | ||
| Three-phase motor | 11Hp | |
| USA Voltage - Frequency | 230v - 60Hz | |
| Max. stock removal | mm | 8 |
