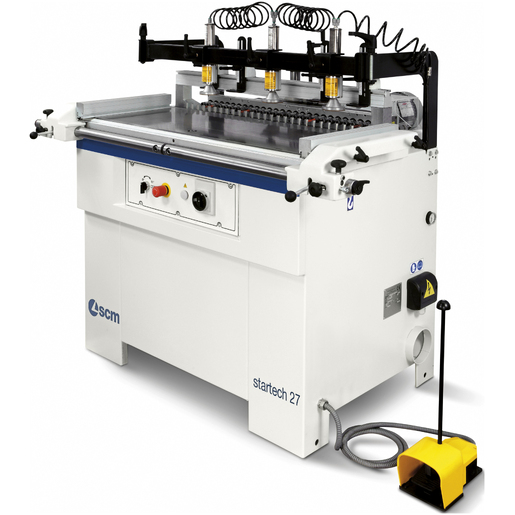

startech 27 Single head multiboring machine with 27 spindles
$11,895.00
(Price does not include taxes, shipping and installation)
Ideal solution to carry out horizontal, vertical and tilted drilling operations for wooden or similar materials machining. With a rich basic equipment, startech 27 is productive, flexible, reliable and precise over time, so much so that it can be defined as "the excellence in manual drilling".
It is equipped with horizontal/vertical automatic positioning of the drilling which can be activated from control panel.
The 27 quick-change chucks guarantee a very fast set-up, the bits can be replaced comfortably and in an instant.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Pneumatic drilling head rotation with 0-45-90° reference stop allowing an immediate changeover between operations.
Drilling depth adjustment from 0 to 60 mm by means of 5 positions revolver with device to automatically change the vertical/horizontal depth to avoid the chipping of the panel.
The drilling head is made from single-piece aluminum casting to guarantee absence of vibrations. The drilling unit running on two rectified cylindrical guides ensures stability and accuracy.

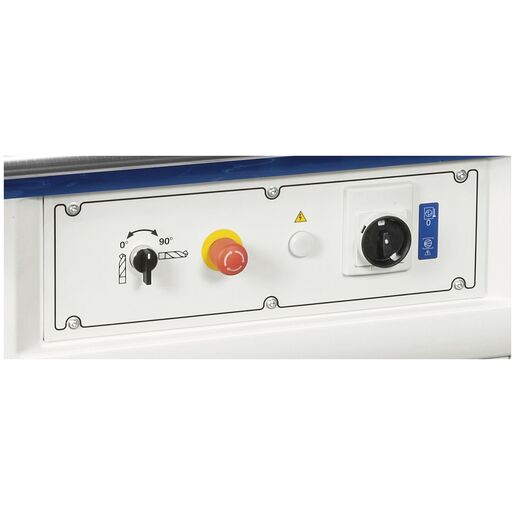

- All controls are ergonomically positioned on the machine front, including the switch that pneumatically tilt the drilling head, allowing an immediate changeover between operations.
- Highly robust cast iron guides with micrometric adjustment of the position and nonius decimal scale which ensures absolute precision. Possibility of the guides exclusion by overturning
- For the perfect drilling even of large panels, the machine is equipped with a 3000 mm length lateral guide, millimeter and with reversible stops, quickly installable/removed.

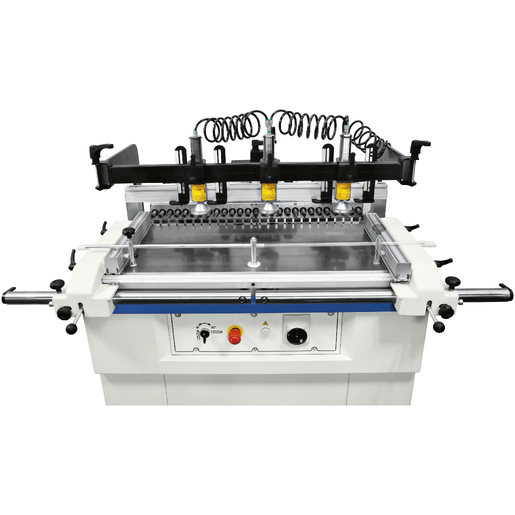

- Mechanical gauge that allows to quickly position the opposite guide to the one used without necessity of the metrical rule reading.
- Servo-assisted drilling unit down stroke adjustment to prevent the bits from chipping particularly delicate panels
- No. 3 upper pressure cylinders for the workpieces hold-down during machining to guarantee absolute precision
- The drilling concept of startech 27 machine uses the outside of the panel (in sight) as a reference and thus any differences in thickness are always on the insdideof the cabinet (non in sight)
- Guide for horizontal drilling at 45°, simple and effective
- Easy-to-use device for working narrow work-pieces
*Does not include power cable
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Servo-assisted boring unit down stroke speed adjustment
- No. 9 drilling bit-holder bushes 10 mm diameter
- Fence for horizontal boring at 45°
- Supplementary top pressure cylinder (Q.ty 1)
- Device for working narrow workpieces
| TECHNICAL FEATURES | ||
| Work table dimensions | mm (inch) | 1096 (43.12) x 407 (16) |
| Work table height | mm (inch) | 900 (35.44) |
| Number of spindles | 27 | |
| Spindles inter-axis | mm (inch) | 32 (1.25) |
| Max. tool diameter | mm (inch) | 40 (1.56) |
| Max. drilling inter-axis | mm (inch) | 832 (32.31) |
| Max. horizontal drilling height | mm (inch) | 60 (11.06) |
| Spindle speed | rpm | 3360 |
| Min./max. panel thickness | mm (inch) | 10 (0.37)/85 (3.31) |
| Max. width under the "gantry structure" | mm (inch) | 1025 (40.31) |
| Max. driling head stroke | mm (inch) | 70 (2.75) |
| Drilling head motor power | kW (hp) | 2.2 (2) |
| Exhaust hood diameter aat the base/on the drilling head | mm (inch) | 120 (4.62) /2x80 (3.12) |
| MINIMUM INSTALLATION REQUIREMENTS | ||
| Compressed air consumption | N1/cycle | 3.5 |
| Extraction air consumption | M³/h (cfm) | 1455 (850) |
| Exhaust air speed | m (feet)/sec | 20 (6.5) |
| USA version - Voltages / Frequency | 230V/60Hz |
For any questions concerning delivery, please contact eshopsupportus@scmgroup.com
To ensure a clear and hassle-free purchasing experience, below are the weight and dimensions of the packaged machine at the time of delivery:
| Dimensions | ||
| Lenght | in | 67 |
| Width | in | 46 |
| Height | in | 46 |
| Weight | lb | 916 |
Before completing the purchase, the customer can choose between two delivery options:
1 - Pickup from Our Warehouse (Incoterm EXW - Ex Works)
The machine can be picked up directly from our warehouses. Prior to purchase, verify in which locations this unit is available.
2 - Delivery by Dedicated Freight Carrier (Incoterm DAP - Delivered at Place)
By selecting this option, SCM will entrust the delivery to a specialized freight carrier, ensuring secure transport managed by professionals. The service includes:
- Advance phone notice before delivery
- Hydraulic tail lift for unloading the machine from the truck
Important: Deliveries are made exclusively to the curbside, meaning the machine will be dropped off at the entrance of the building or designated location. Internal transport and positioning inside the premises are not included. If a forklift or other equipment is needed for internal movement, the customer is responsible for arranging these operations.
If the machine is purchased with the installation service, after the order is completed, SCM Service or an authorized center will contact the customer to coordinate: the installation date, the necessary equipment, he required documentation for installation.
SCM Group US is not responsible for any damages, injuries, or losses resulting from improper installation, unsafe or incorrect use of the machine, failure to follow the manufacturer’s guidelines, or any modifications made by the customer or third parties.
Customers who choose to opt out of professional installation assume full responsibility for ensuring that the machine is installed and operated in strict accordance with the provided instructions and safety standards. If you have not received the user manual, please contact us with the machine’s serial number to obtain it before installation and use.
SCM Group US disclaims all liability for any accidents, malfunctions, or consequential damages resulting from non-compliance with these guidelines.
Installation & Warranty Activation
If installation is not included in your purchase and you would like to have the machine installed by our technicians, please contact us.
If SCM installation is not required, you must complete and submit the warranty activation form (VICA) within 10 business days from the machine’s delivery date. The form will be provided with the purchase order confirmation or can be requested by contacting us. Failure to submit the form on time may result in the warranty being voided.
For any further information or assistance, please feel free to contact us.
