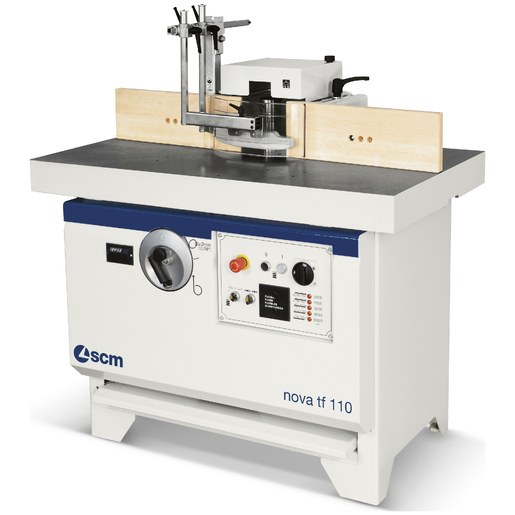

nova tf 110 Spindle moulder
$9,985.00
(Price does not include taxes, shipping and installation)
Nova tf 110 spindle moulder guarantees quality at your finger tips. Easy-to-use, productivity and efficency, flexibility are the main advantages of this machine. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine. The spindle moulder fence with mechanical programming guarantees maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The shaper spindle is surrounded by a cast iron “cup” to protect the internal mechanical components from shavings and sawdust
The spindle moulder fence with mechanical programming and digital readouts ensures accuracy to a tenth of a millimetre in positioning the tables so that no more test runs are required to get the desired result
The operator easily adjusts the unit movement due to the hand wheel with mechanical decimal readout located on the front of the machine for a precise and reliable machine’s set up
- The 5 standard speeds of the shaper are ideal for any type of machining, from shaping to routing, with the possibility to fit tools up to 250 mm (9.81”) of diameter
- The side handles make it easy to remove and reposition the spindle moulder fence from the worktable
- Top power! The machine has a 8kW (11hp) 60Hz motor with automatic star-delta starter
*Does not include power cable
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Spindle moulder fence with mechanical adjustment (CE and USA/Canada version)
- Aluminium tables instead of wooden tables for fence
- Three-phase motor 7kW (9,5hp) 50Hz - 8kW (10hp) 60Hz
- MK4 Interchangeable spindle
- Spindle moulder shaft of 1 1/4""
- Locking by countersunk socket screw
- Locking without slot
TECHNICAL FEATURES | ||
Spindle moulder diameter | 1 1/4" | |
Max. useful spindle length | [mm] | 180 (7.06”) |
Spindle moulder speeds | [rpm] | 3000/4500/6000/ 8000/10.000 |
Max. tool diameter when profiling | [mm] | 250 (9.81”) |
Max. diam. of tool lowered under the table at 90° | [mm] | 300 (11.75”) |
Other technical features: | ||
Three-phase motor | 8kW (11hp) 60Hz | |
Exhaust outlets diameter | [mm] | 120 (4.75”) |
Voltage-Frequency |
| 230V-60Hz |
For any questions concerning delivery, please contact eshopsupportus@scmgroup.com
To ensure a clear and hassle-free purchasing experience, below are the weight and dimensions of the packaged machine at the time of delivery:
| Dimensions | ||
| Lenght | in | 67 |
| Width | in | 46 |
| Height | in | 45 |
| Weight | lb | 1074 |
Before completing the purchase, the customer can choose between two delivery options:
1 - Pickup from Our Warehouse (Incoterm EXW - Ex Works)
The machine can be picked up directly from our warehouses. Prior to purchase, verify in which locations this unit is available.
2 - Delivery by Dedicated Freight Carrier (Incoterm DAP - Delivered at Place)
By selecting this option, SCM will entrust the delivery to a specialized freight carrier, ensuring secure transport managed by professionals. The service includes:
- Advance phone notice before delivery
- Hydraulic tail lift for unloading the machine from the truck
Important: Deliveries are made exclusively to the curbside, meaning the machine will be dropped off at the entrance of the building or designated location. Internal transport and positioning inside the premises are not included. If a forklift or other equipment is needed for internal movement, the customer is responsible for arranging these operations.
If the machine is purchased with the installation service, after the order is completed, SCM Service or an authorized center will contact the customer to coordinate: the installation date, the necessary equipment, he required documentation for installation.
SCM Group US is not responsible for any damages, injuries, or losses resulting from improper installation, unsafe or incorrect use of the machine, failure to follow the manufacturer’s guidelines, or any modifications made by the customer or third parties.
Customers who choose to opt out of professional installation assume full responsibility for ensuring that the machine is installed and operated in strict accordance with the provided instructions and safety standards. If you have not received the user manual, please contact us with the machine’s serial number to obtain it before installation and use.
SCM Group US disclaims all liability for any accidents, malfunctions, or consequential damages resulting from non-compliance with these guidelines.
Installation & Warranty Activation
If installation is not included in your purchase and you would like to have the machine installed by our technicians, please contact us.
If SCM installation is not required, you must complete and submit the warranty activation form (VICA) within 10 business days from the machine’s delivery date. The form will be provided with the purchase order confirmation or can be requested by contacting us. Failure to submit the form on time may result in the warranty being voided.
For any further information or assistance, please feel free to contact us.
