minimax sc 3c 1 Single Phase
A$10,762.00
(Price does not include taxes, shipping and installation)
The minimax sc 3 classic, the most compact sliding table saw for handling full-sized sheets. With a 2660mm sliding table stroke, it easily rips down 2400mm lengths, maximizing panel yield. Ideal for faced boards, it features a large crosscut fence, flip-over stops, and an oversized outrigger support table. With an aluminum sliding table, 300mm blade capacity, and scoring saw, it delivers precise performance. The 1270mm ripping capacity and scratch-free operation make it a reliable choice.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Performance without limits
Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.
Exclusive
Easier and more precise cutting is possible due to a perfectly stable support that is guaranteed, even for large work pieces, the wide sliding table and the large squaring frame fence provided as st+W30andard. Top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustment required.
The table

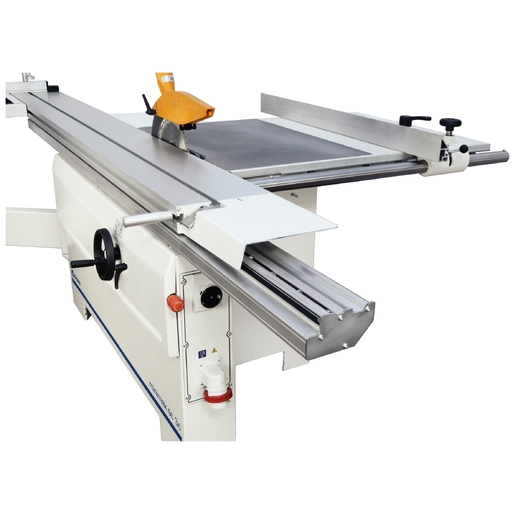

The table is made of extruded anodized aluminium with a closed honeycomb structure. The sliding table runs on an exclusive slideway system consisting of calibrated and hardened F550 SX steel guides.
- Very high effective saw unit exhaust hood: the emission level is 90% lower with respect to the maximum level allowed by the European safety regulations!
- The sliding carriage ensures top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustments required.
- The sliding carriage is equipped with an additional table for the support of large dimensioned panels.
- The telescopic squaring rule is equipped with 2 flip-over stops which allow to have precise references that can be used for both profiles.
- The angular cutting device with flip-over stops allows to rapidly perform mitre cuts without moving the squaring fence and it is very useful for small work pieces

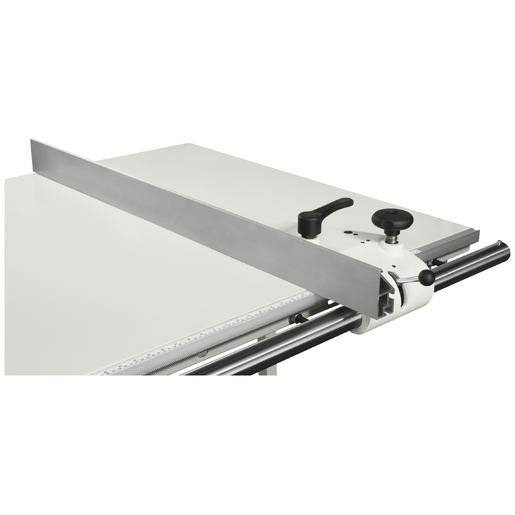

- Absolute precision and rapid positioning of the parallel fence which slides on a ground steel round bar
- Extruded aluminum fences with support and rapid locking guarantee maximum practicality.
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Single-phase motor 2,2kW (3hp) 50Hz
- Version with maximum squaring stroke 2600 mm
- Belt driven scoring unit complete with blade
- Cutting width with parallel fence 1270 mm
| TECHNICAL DATA | ||
| Max. sawblade diameter | mm / inches | 315 / 12 |
| Sawblade arbor size | mm / inches | 30 / 1.18 |
| Max. sawblade projection from table at 90°/45° | mm / inches | 100/78 3.94/3.07 |
| Cutting width on parallel fence (Rip capacity) | mm / inches | 1270 / 50 |
| Max. squaring stroke of sliding table saw | mm / ft | 1600 / 5.5 |
| Single-phase motor | kW/Hp | 2.2/3 |
