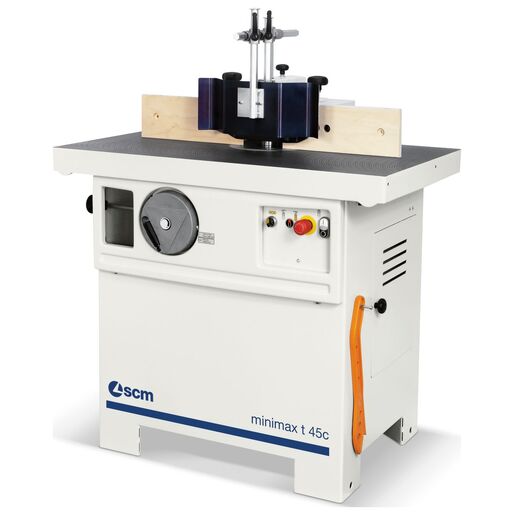

minimax t 45c Spindle moudler with fixed shaft
10% online discount
£3,446.10(Price does not include VAT and delivery)
The minimax t 45c is an easy to use fixed shaft moulder. Great attention has been paid to the heart of this machine, i.e. the spindle moulder group which has a large column entirely made of cast iron and it is equipped with a cup, also made of cast iron, which protects the mechanical components inside the machine from chips and dust. Precision and completely safe machining with the adjustable moulder guide with micrometric adjustment, complete with vertical and horizontal pressers.
Added to Your Shopping Cart
Any type of machining: profiling, contouring and tenoning
Wide range of devices to customize the machine according to your need
Il gruppo toupie è interamente in ghisa ed è dotato di custodie di metallo che preservano le componenti meccaniche interne alla macchina da trucioli e polveri.
Lavorazioni di precisione ed in tutta sicurezza con la guida toupie registrabile con regolazione micrometrica, completa di pressatori verticali e orizzontali.
- Adjustable spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers
- Controls on machine front
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Single-phase motor 2,2kW (3hp) 50Hz
- Spindle moulder shaft of 30 mm diam.
- Locking by countersunk socket screw
| TECHNICAL FEATURES | ||
| Max. useful spindle length | [mm] | 108* |
| Spindle moulder speeds (at 50 Hz) | [rpm] | 3500/6000/8000/10,000 |
| Max. tool diameter when profiling | [mm] | 210 |
| Max. diameter of tool lowered under the table at 90° | [mm] | 180 |
| Three-phase motors S6 | 5kW (6.6hp) 50Hz - 6kW (8hp) 60Hz | |
| Exhaust outlets diameter | [mm] | 120 |
| Spindle moulder available with following diameters: | ||
| 3/4"" - 1"" - 1 1/4"" | ||
| [mm] | 30 – 32 - 35 - 40 - 50 |
