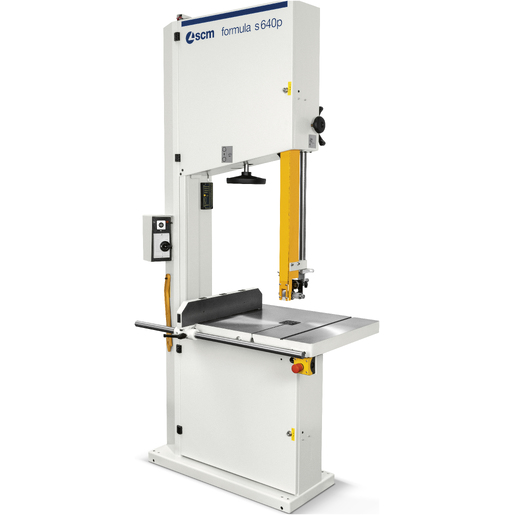

formula s 640p band saw - 1ph
30% Clearance Discount
$5,589.50(Price does not include taxes, shipping and installation)
The s 640p formula band saw is equipped with a cast iron work table as well very thick cast iron wheels running on sealed for life ball bearings. This has a positive effect on the stability, precision and therefore reliability of the machine.The top and bottom high precision blade guides ensure a perfect result when carrying out the straight and tilted cuts on wooden, plastic or alluminum materials. The dimensions of this machine are larger than the previous model (formula s 540p), this allows machining on larger materials.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Solidity and sturdiness
Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.
Safety first
Total safety machining with telescopic protections with rackwork to the blade.
Perfect results
A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.
- Cast-iron squaring fence for maximum stability and cutting repeatability
- Rack and pinion lifting system of the guide unit for a fast and safe setup
- Saw blade tensioning indicator that guarantees immediate and continuous control of the value
- Cast-iron work table with lapped surface for maximum smoothness of the piece
- Full disc cast iron wheels to keep the blade speed constant during machining
- Top and bottom blade guide with ball bearings to minimize lateral movements of the blade and therefore increase the precision of the cut
- Cleaning brush on bottom wheel to reduce the wheel wear
- Fence for angular cuttings
*Do not include power cable
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Single-phase motor (USA version)
- Wheels for machine movement
TECHNICAL FEATURES | ||
Worktable dimensions | [mm] | 600 x 885 (23.62” x 34.81”) |
Cast iron saw wheels diam. | [mm] | 640 (25.19”) |
Saw wheels width | [mm] | 38 (1.5”) |
Max. cutting height (inches) | [mm] | 600 (23.62”) |
Max. cutting width | [mm] | 620 (24.44”) |
Worktable tilting | 0° ÷ 45° | |
Min./max. blade dimensions | [mm] | 8/35 (0.31” x 1.37”) |
Single-phase motor S1 230V 60Hz | 3,6kW (4,8hp) | |
Exhaust outlet diameter | [mm] | No. 2 x 120 (4.75”) |
| Miter gauge slot | 3/8 x 3/4 | |
INSTALLATION REQUIREMENTS | ||
Extraction air consumption | [m3/h] | 1630 |
Exhaust air speed (dry shavings) | [m/s] | 20 (0.81”) |
Installed motor power | [VA] | 3600 |
Voltage-Frequency | 230V-60Hz |
