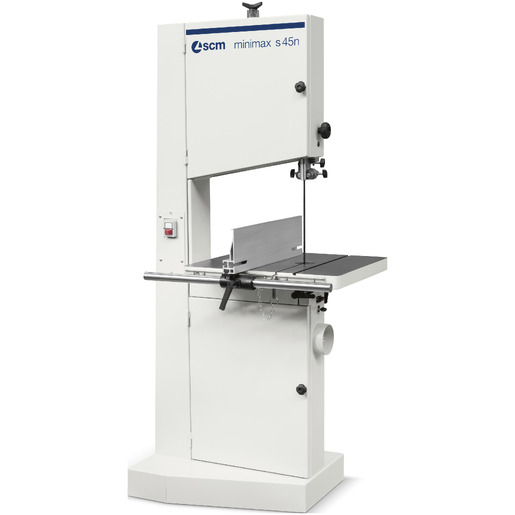

minimax s 45n Band saw
$3,785.00
(Price does not include taxes, shipping and installation)
The minimax s 45n band saw is equipped with a cast iron work table, very thick cast iron wheels running on sealed for life ball bearings. This positively affect the machine solidity and therefore its stability. The sturdiness of this band saw guarantees precision and therefore reliability.The top and bottom high precision blade guides ensure perfect precision in straight and tilted cuts, on wood, plastic or aluminum materials.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Added to Your Shopping Cart

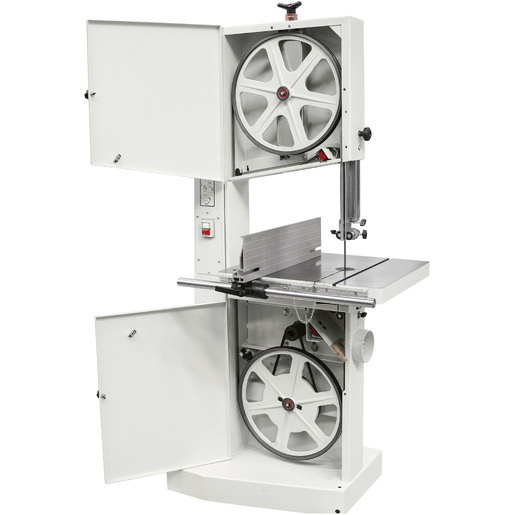

Sturdiness and solidity is guaranteed by the very thick, cast iron wheels, as well as the worktable.
A perfect cut result is assured by the top and bottom high precision blade guides.
Total safety machining with telescopic protections with rackwork to the blade.
- Practical machine suitable to perform straight and tilted cuts on wood, plastic and aluminum
- The wheels run on sealed for life ball bearings for total reliability
- The mitre fence for angular cutting allows a versatile machine use.
- Wheels for an easy machine movement
*Do not include power cable
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Single-phase motor 2,2kW (3hp) 60Hz
- Mitre fence for angular cutting
- Wheels for machine movement
| TECHNICAL FEATURES | ||
| Worktable dimensions | mm(in) | 600 x 520 (23.62” x 20.5”) |
| Worktable height from floor | mm(in) | 900 (35.44”) |
| Cast iron saw wheels diameter | mm(in) | 450 (17.69”) |
| Saw wheels | rpm | 700 (27.56”) |
| Maximum cutting height | mm(in) | 300 (11.81”) |
| Maximum cutting width | mm(in) | 440 (17.31”) |
| Maximum worktable tilting | mm(in) | 0° ÷ 20° |
| Minimum/maximum saw blade length | mm(in) | 3690/3742 (145.25”/147.31”) |
| Minimum/maximum blade dimensions | mm(in) | 6 x 0,5/25 x 0,5 (0.25/0.94” width) |
| Single-phase motor | mm(in) | 2,2kW (3hp) 50Hz |
| Exhaust outlet diameter | mm(in) | 120 (4.75”) |
| Miter gauge slot | 3/8 x 3/4 | |
| MINIMUM INSTALLATION REQUIREMENTS | ||
| Section of electrical cable | mm2(in2) | 4 (0.19”) |
| Power absorption | A | 11 |
| Voltage - frequency | 230V - 60Hz |
