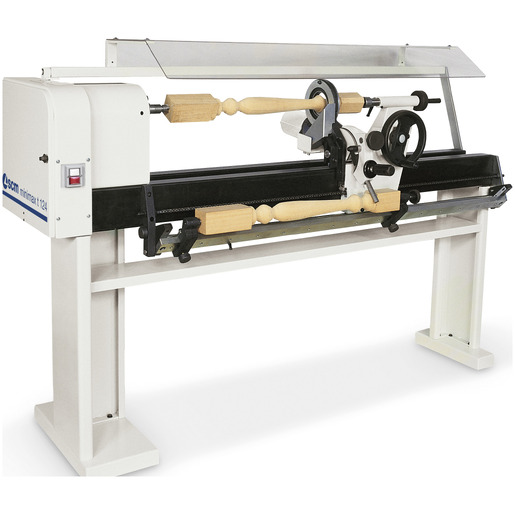

minimax t 124 Wood turning lathe
$5,995.00
(Price does not include taxes, shipping and installation)
The minimax t124 wood turning lathe contains all the features that a good lathe must have: power, speed, weight, stabilityandstiffness
The power must be adequate to the size of the piece being machined, this is why the minimax woodturning lathes have a power of 1,8kW and 4 speeds (680 / 1200 / 2200 / 3000 rpm) so they can machine small and large pieces.
The stability, the weight and the stiffness are three elements that are strictly linked to each other; The main characteristic is the size (width and thickness) of the woodturning lathe body and the size and weight of the legs of the base; for this reason the minimax woodturning lathe stands out from the rest thanks to its sturdiness and stability that guarantee extremely precise machining.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Available 5
Item ready for delivery
Total safety for the operator thanks to the transparent guard.
Full range of devices to realize your creativeness.
Copier enables copying work at diameters greater or smaller than the template of pattern. Feed by hand-wheel.
Four-jaw chuck 125 mm diameter, for the rapid clamping of squared or circular components.
- Maximum reliability and precision, with its strong base
- The copier device enables copying work at diameters greater or smaller than the template or pattern, and has a feed by hand-wheel
- The mobile steady rest, with pre-cutting tool, guarantees a perfect finishing
- The revolving tail centre with morse taper 2 ensures that the piece is dragged without cutting it to support it.
*Do not include power cable
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Single-phase motor 1,5kW (2hp) 50Hz - 1,8kW (2,5hp) 60Hz
- Copying device with tool
- Mobile rest with pre-cutting tool, max diam. 80 mm
- Revolving tail centre with morse taper n. 2
| TECHNICAL FEATURES | ||
| Distance between centres | mm(in) | 1150 (45.25”) |
| Centres height | mm(in) | 200 (7.87”) |
| 4 chuck speeds | rpm | 680/1200/2200/3000 |
| Tape drive with morse taper | 2 N | |
| Ball bearing centre with morse taper | 2 N | |
| Faceplate diameter | mm(in) | 130 (5.12”) |
| Single-phase motor | mm(in) | 1,8kW (2,5hp) 60Hz |
| MINIMUM INSTALLATION REQUIREMENTS | ||
| Section of electrical cable | mm2(in2) | 4 (0.19”) |
| Power absorption | A | 10 |
| Voltage - frequency | 230V - 60Hz |
