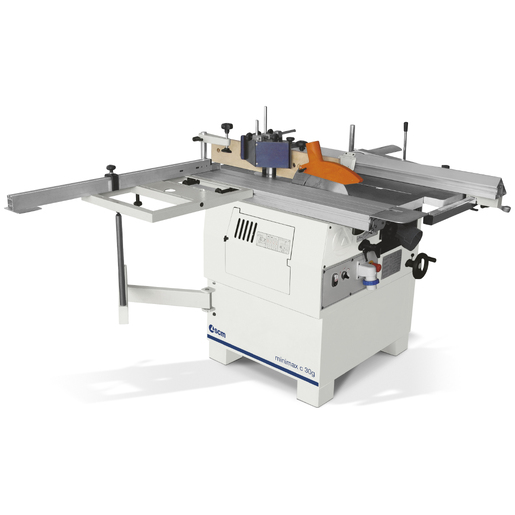

minimax c 30g X1 Single Phase
33% Black Friday
A$7,808.18(Price does not include taxes, shipping and installation)
The minimax c 30g universal combined machine, designed for demanding hobbyists and crafts woodworking workshops. This machine stands out with its user-friendly features, including an inward-opening surfacing worktable and anodized-extruded guides for smooth operation. It offers maximum flexibility through adjustable speeds on the spindle moulder unit and precise cutting with a tiltable saw unit and sliding aluminum carriage.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
Cutting precision
Tilting saw unit with a 250 mm blade and a maximum blade projection from table at 90° of 80 mm. The saw unit can be raised and tilted using convenient hand-wheels. The anodized aluminum sliding table, with a 1200 mm stroke, slides next to the blade, thus ensuring better cutting precision.
Flexibility
Maximum flexibility in spindle moulder tool use, with the unit with 2 speed (5000/7500 rpm). The machines have a spindle moulder fence with micrometric adjustment, a feature which is particularly useful on profiling jobs. Tenoning is easy too, thanks to the aluminum sliding table, the right speed setting and the special protection hood (option).
Practical and ergonomic
To keep the machine compact and make machining easier, the surfacing table opens towards the inside of the machine. Thanks to an efficient feed system, the thicknessing unit can process wood up to 200 mm thick.
CE safety
Genius machines have a rich equipment of CE safety available as standard, such as the spindle protection to carry out machining on curved and shaped profiles.
- Tilting saw unit for greater versatility of the machine, it allows to carry out different types of machining, without limitation to creativity
- Saw unit raising and tilting using convenient hand-wheels which guarantees maximum setting ease between different processes
- The squaring frame ensures excellent work piece support, to ensure greater safety and precision
- Extruded aluminum fences with support and rapid locking guarantee maximum practicality.
- The surfacing table opens towards the inside of the machine guarantees excellent ergonomics, allowing the operator to move easily and without hindrance
- The spindle moulder fence with micrometric adjustment is very useful for profiling jobs.
- Wheels for an easy machine movement
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- minimax c 30g CE version
- Squaring frame
- Wheels for machine movement
- "Xylent" spiralknife cutterblock with 3 series of knives
- Single-phase motors 1,8kW (2,5hp) 50Hz - 2,2kW (3hp) 60Hz
- Spindle moulder shaft of 30 mm diam
- Locking by countersunk socket screw
| TECHNICAL DATA | ||
| Cutterhead working width | mm / inches | 300 / 12 |
| Jointer bed length | mm / inches | 1200 / 47 |
| Max. sawblade diameter | mm / inches | 250 / 10 |
| Sawblade arbor size | mm / inches | 16 / ? |
| Max. sawblade projection from table at 90°/45° | mm / inches | 75/60 2.9/2.3 |
| Cutting width on parallel fence (Rip capacity) | mm / inches | 540 / 21 |
| Max. useful spindle length | mm / inches | 75 / 3 |
| Max. tool diameter when profiling | mm / inches | 160 / 6.25 |
| Spindle moulder speed | rpm | 4000/6500 |
| Single-phase motor (Voltage) | kW/Hp (V) | 1.8/2.5 (240) |
