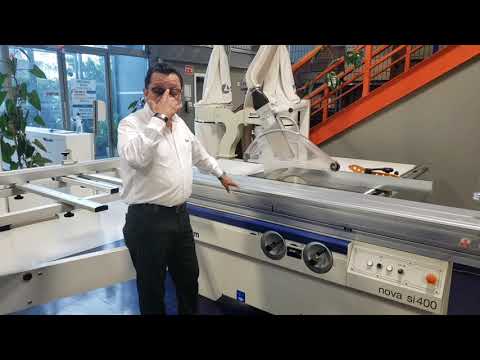

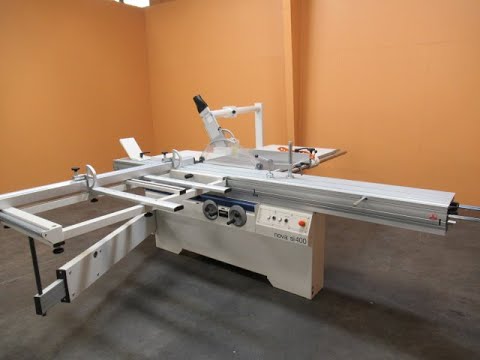

nova si 400 Circular saw
$13,985.00
(Price does not include taxes, shipping and installation)
The NOVA si 400 is the best seller of its category. Precise, cost effective and compact tilting blade circular saw, ideal for small spaces and for those who do not want to give up the reliability of SCM joinery machines. A notable feature is the presence of the scoring unit, which can be conveniently adjusted from the outside of the machine, as well as an amazing cut of both thick solid wood and even melamine-faced panels, with the saw unit having a maximum blade diameter of 400 mm (15.75”) with the scoring blade mounted.
Guaranteed quality at your finger tips.
*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.
The saw blade lifting of the saw unit is carried out by a sturdy cast-iron structure with sliding on ground round slideways which guarantee the best accuracy. The unit tilting is carried out on cast-iron rotation sectors in a crescent shape to ensure reliability over time
Optimal support also to larger pieces, with the sliding table 360 mm (14.19”) wide. The carriage sliding system is guaranteed for 10 years: a proof of reliability and technology without comparisons
Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence with inclined metric scale and two reversible stops can be used to square panels measuring 3200 x 3200 mm (125.94” x 125.94”) and for miter cuts at up to 45° on both sides of the frame
SCM Thundercut App for mobile devices: optimizer/sequencer even for not skilled workers
All the handwheels are on the machine front: always user friendly and precise. The dedicated gears box (SCM solution), fully protected from dust, provides a smooth and direct transmission so that every minimum handwheel movement corresponds to a precise blade adjustment
- Maximum torsional rigidity and total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts
- The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor
- Vertical and horizontal adjustments of the scoring unit are carried out by user-friendly mechanical levers that operate directly making precise and smooth movements. The useful mechanical stops allows immediately finding of the set position
- The machine is provided with a 120 mm (4.75”) diameter, manually expandable scoring blade with variable thickness from 2,8 to 3,6 mm (0.12”) for the maximum versatility
- The guides of the sliding table are secured with a procedure of aluminium riveting, so that to ensure an exceptional precision and smoothness
- The round cross-section sliding bar for the parallel fence with micrometric adjustments ensures a smooth, fast and especially precise positioning of the fence
*Do not include power cable
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Expandable scoring blade
- Eccentric clamp
- Saw blade 350 mm
| TECHNICAL FEATURES | ||
Blades tilting | 90° ÷ 45° | |
| Max. saw blade diam. with scoring blade installed | mm | 400 (15.75”) |
| Max. saw blade projection from table at 90°/45° | mm | 140/97 (5.5”/3.81”) |
| Scoring blade diameter | mm | 120 (4.75”) |
| Squaring stroke | mm | 3200 (125.94”) |
| Cutting width on parallel fence | mm | 1270 (49.94”) |
| Other technical features: | ||
| Three-phase motor | 8kW (11hp) 60Hz | |
| Exhaust outlets diameter | mm | 120 (4.75”) |
| MINIMUM INSTALLATION REQUIREMENTS | ||
| Power absorption | A | 30 |
| Voltage - frequency | 230V - 60Hz |
