Optimal support also to larger pieces, with the sliding table 360 mm wide. The guides are secured with a procedure of aluminum riveting, so that to ensure an exceptional precision and smoothness.

Incredible cutting thanks to the saw unit with a blade (not included) that has a maximum diameter of 315 mm with the scoring blade installed.

Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence has two reversible stops so to have precise references on both sides of it.

SCM Thundercut App for mobile devices: optimizer/sequencer even for not skilled workers.

The lifting of the blade unit is done by a robust cast iron structure with dovetail system for the maximum sturdiness and rigidity
The mechanical readout for the saw unit tilting grants a comfortable blades positioning and an immediate and constant control of it
The scoring blade is adjustable from the outside without tools and allows fast and accurate positioning with no play
The sliding table ensures a top quality precision with a smooth and silent action, a self-cleaning dustproof system, and a long lasting accuracy with no adjustments required
The sliding table is provided with an additional table for the support of panels with large dimensions
The angular cutting device with flip-over stops allows to rapidly perform mitre cuts without moving the squaring fence and it is very useful for small work pieces
The round cross-section sliding bar for the parallel fence with micrometric adjustments ensures a smooth, fast and especially precise positioning of the fence
The saw unit closed loop structure is made of a heavy cast iron and is supported firmly under the table by two lateral supports in a crescent shape: these solutions give strength and rigidity, guaranteeing perfect cutting results.

*Does not include power cable

MACHINE CONFIGURATION
(Options and accessories included with this machine)

Version with maximum squaring stroke 2600 mm
Belt driven scoring unit complete with blade
"DADO SET" capability
Angular cutting device with flip-over stops
Additional table on the sliding table
Cutting width with parallel fence 1270 mm
Numerical radout for the visualisation of the saw unit tilting
Single-phase motor 3,6kW (4,8hp) 60Hz
Saw blade 300mm

TECHNICAL FEATURES
Cast iron worktable dimensions	mm(in)	840 x 560 (33.06 x 22”)
Blade tilting	mm(in)	90° ÷ 45°
Max. blade diameter with scoring blade installed	mm(in)	315 (12.37”)
Max. saw blade projection from table at 90°/45°	mm(in)	100/71 3.94/2.81”)
Max. squaring stroke	mm(in)	2600 (102.37”)
Cutting width on parallel fence	mm(in)	1270 (49.94”)
Other technical features:
Single-phase motor	mm(in)	3,6kW (4,8hp) 60Hz
Exhaust outlets diameter	mm(in)	120 (4.75”)
MINIMUM INSTALLATION REQUIREMENTS
Section of electrical cable	mm2(in2)	6 (0.25”)
Power absorption	A	20
Voltage - frequency		230V - 60Hz

Machine Details

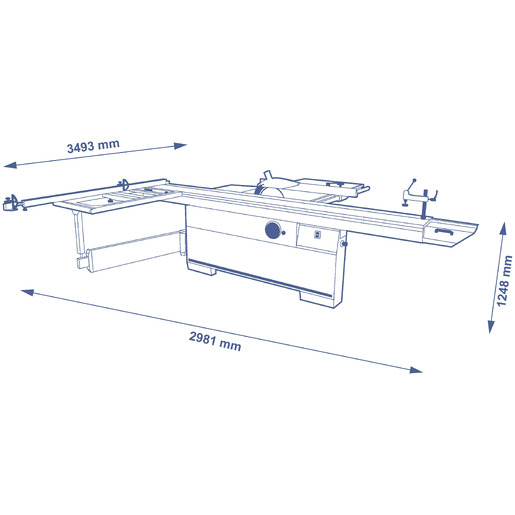

Layout

For any questions concerning delivery, please contact eshopsupportus@scmgroup.com

To ensure a clear and hassle-free purchasing experience, below are the weight and dimensions of the packaged machine at the time of delivery:

Dimensions
Lenght	in	111
Width	in	43
Height	in	46
Weight	lb	1393

Before completing the purchase, the customer can choose between two delivery options:

1 - Pickup from Our Warehouse (Incoterm EXW - Ex Works)
The machine can be picked up personally from our warehouses. Prior to purchase, verify in which locations this unit is available.

2 - Delivery by Dedicated Freight Carrier (Incoterm DAP - Delivered at Place)
By selecting this option, SCM will entrust the delivery to a specialized freight carrier, ensuring secure transport managed by professionals. The service includes:

Advance phone notice before delivery

Important: Due to the size of the machine, unloading from the truck is the customer’s responsibility. A forklift or appropriate equipment will be required to safely complete the unloading process. Internal transport and positioning inside the premises are not included.

If the machine is purchased with the installation service, after the order is completed, SCM Service or an authorized center will contact the customer to coordinate: the installation date, the necessary equipment, he required documentation for installation.

SCM Group US is not responsible for any damages, injuries, or losses resulting from improper installation, unsafe or incorrect use of the machine, failure to follow the manufacturer’s guidelines, or any modifications made by the customer or third parties.
Customers who choose to opt out of professional installation assume full responsibility for ensuring that the machine is installed and operated in strict accordance with the provided instructions and safety standards. If you have not received the user manual, please contact us with the machine’s serial number to obtain it before installation and use.
SCM Group US disclaims all liability for any accidents, malfunctions, or consequential damages resulting from non-compliance with these guidelines.

Installation & Warranty Activation
If installation is not included in your purchase and you would like to have the machine installed by our technicians, please contact us.
If SCM installation is not required, you must complete and submit the warranty activation form (VICA) within 10 business days from the machine’s delivery date. The form will be provided with the purchase order confirmation or can be requested by contacting us. Failure to submit the form on time may result in the warranty being voided.

For any further information or assistance, please feel free to contact us.
